Temperature Control By PLC
/ Temperature Control By PLC
Experiments:
Introduction Control
LoopsTemperature Control using PLC
Recommended control modules (not included):
Programmable Logic Control Trainer (Siemens Based) IT-1200S
Programmable Logic Control Trainer (Siemens Based) IT-1200S-40
Programmable Logic Control Trainer (Fatek Based) IT-FBs-24MA
Programmable Logic Control Trainer (Fatek Based) IT-FBs-40MA

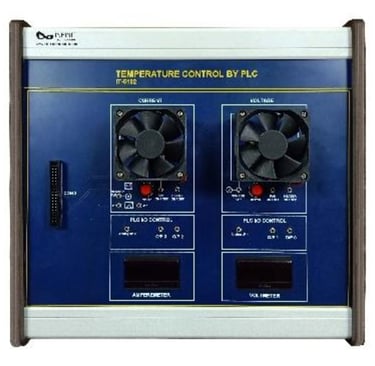

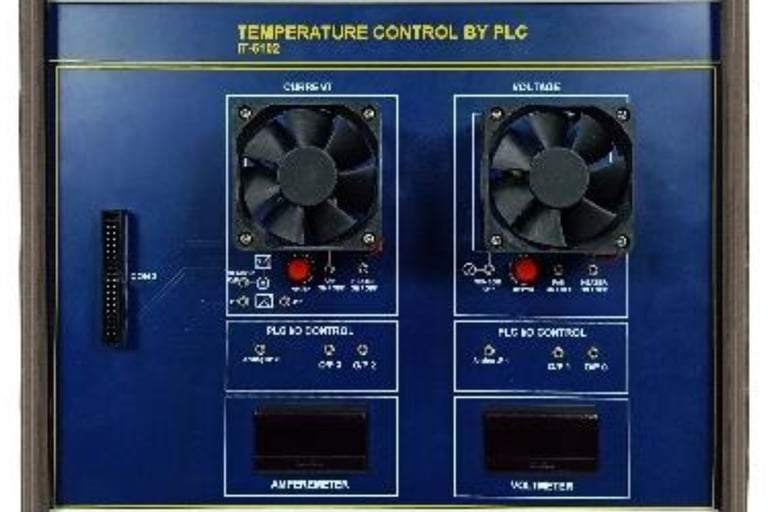

The IT-5102 is a simulation Module for Temperature Control. The module is equipped with two Resistive and Cooling fans Two Temperature Sensors are installed on the module one Temperature sensor provide voltage type analog output and other provides Current type analog output Temperature is displayed on the module using two digital meters The educational objective is to broaden the student’s knowledge in programming and testing of Temperature control
Category: Automation and Control Technology
