80386 Microprocessor Training System
Experiments Included:
Controlling the Processor I/O Ports
Address Decoding of an I/O Device
Study of UART 0/1 Device
Controlling Keypad and Joystick
Control of 8-Bit A/D Converter
Control of 8-Bit D/A Converter
16x 4 Character LCD
Experiments with Optional Add-on Cards:
Programmable Peripheral Interface (82C55)
16-8 Dot Matrix
128×64 Graphical LCD
8-CH Relay Output
DC Motor
R/C Servo
Stepper Motor with Direction Control
Strain Gauge & Temperature Module
Audio Unit
Ultrasonic
Traffic Light

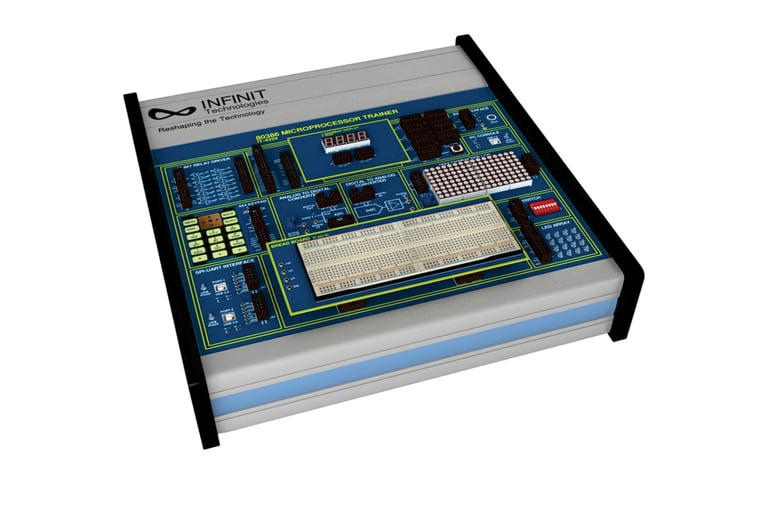

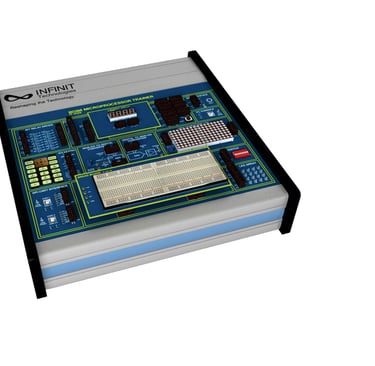

IT-4329 32-Bit Microprocessor Trainer based on the Intel 386Ex microcomputer. The i386EX is a high performance, 32-bit, single-chip microcomputer that is software compatible with the Intel 80386 family of microprocessors. DOS compatibility allows development in a familiar environment with a wide range of tools. This Trainer contains on board devices like A/D converter, D/A converter, Dot Matrix Displays, Matrix keypad, 7-Segment, DIP switches and LEDs for monitoring and 840 tie point bread board for custom applications.
The application can then be tested through the console serial port. Borland C compiler IDE enables environment for east development of programs/applications. PC software is provided with the training system to upload programs and to execute the programs on the training system.
Technical Features:
25MHz Intel 386Ex Processor
XDOS (PC DOS 3.3 Compatible)
415K Flash
36 Digital I/O lines
RS-232 Port with USB-UART interface
PC Console Port for program uploading / execution
3 PC Compatible Counter/Timer Channels
Watchdog Timer
Selected PC BIOS Functions
Full Address/Data Expansion Bus
Battery Backup for Clock/Calendar
8-Bit A/D Converter
8-Bit D/A Converter
16-Bit Monitor LEDs
8-Bit DIP Switches
4×4 Matrix Keypad with 5-way joystick
16×4 Character LCD
2x SPI-UART devices based on MAX3100
Breadboard with 840 Tie Points (IT-4331)
16 x Relay driver
Optional Add-On Modules:
IT-4332 8-CH ADC
IT-4333 4-CH DAC
IT-4334 Programmable Peripheral Interface (82C55)
IT-4335 4x 7-Segment
IT-4336 16-8 Dot Matrix
IT-4338 128×64 Graphical LCD
IT-4339A 8-CH Relay Output
IT-4340 DC Motor with Optical Encoder
IT-4341 R/C Servo with Driver
IT-4342 Stepper Motor with Direction Control
IT-4343 Strain Gauge & Temperature Module
IT-4344 Audio Unit Module
IT-4345 Ultrasonic Module
IT-4346 Traffic Light Module
Accessories: Power Cord, 2mm Patch Cords, IDC Connector Cables, USB Interface Cable, Software CD
