AM-DSB-SSB Receiver Trainer
Experiments Included:
Audio Amplifier
Static Measurements
Dynamic Measurements
AM detector and AGC Stage
Static Measurements
Dynamic Measurements
Second AM IF Amplifier
Static Measurements
Dynamic Measurements
First AM IF Amplifier
Static Measurements
Dynamic Measurements
AM Mixer, AM Oscillator and AM Antenna
Static Measurements
Dynamic Measurements
AM Alignment with Test Equipment
Demodulation of AM SSB-SC
Category: Telecommunication Technology Products

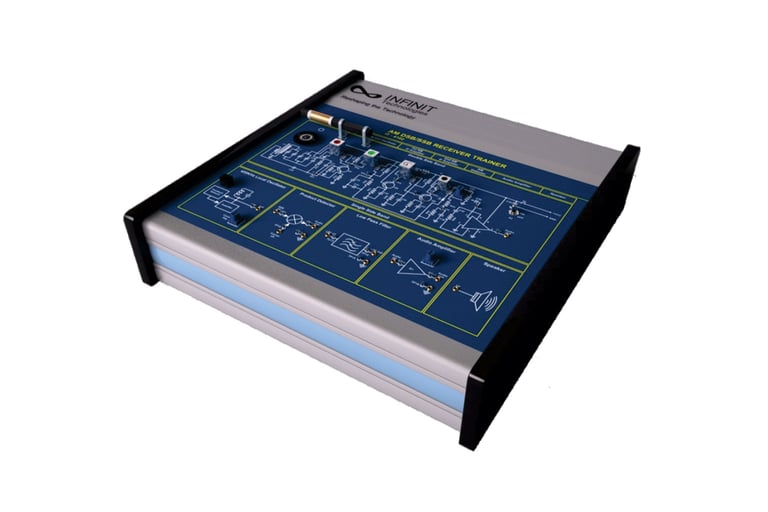

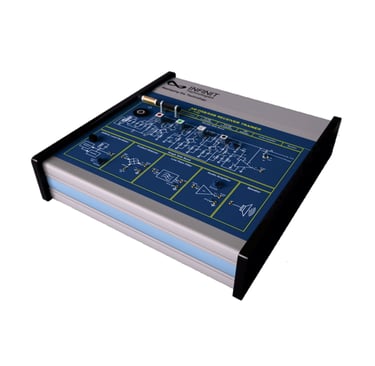

IT-4102 is the training system which is designed to give the student a deep understanding of recovery techniques of Amplitude Modulation signal. Receiver is designed similar to that of a commercial Radio Receiver. It demonstrates Super heterodyne Receiver with Automatic Gain Control (AGC) Technique to demodulate the received AM DSB signal. AM SSB signal is received using product detector.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Each Section Works as an Independent Unit Input
Output Devices like Speaker Included
Technical Features:
Type: Super Heterodyne AM Receiver
Frequency Range: 955 KHz to 2055 KHz
Antenna: Standard AM antenna
On Board Devices:
RF Amplifier
Mixer
Local Oscillator
Beat Frequency Oscillator
IF Amplifier 1
IF Amplifier 2
Detectors:
Super Heterodyne AM Receiver (DSB)
Product Detector (SSB)
Local Oscillator: 455 KHz
Audio Amplifier: Integrated amplifier with volume control and speaker
Low Pass Filter: 5th Order Butterworth with cut off at 3.4KHz
Speaker: 8 Ohm
Interconnections: 2mm gold plated pins
Accessories: Power cord, Experiment Manual, Set of patch cords
