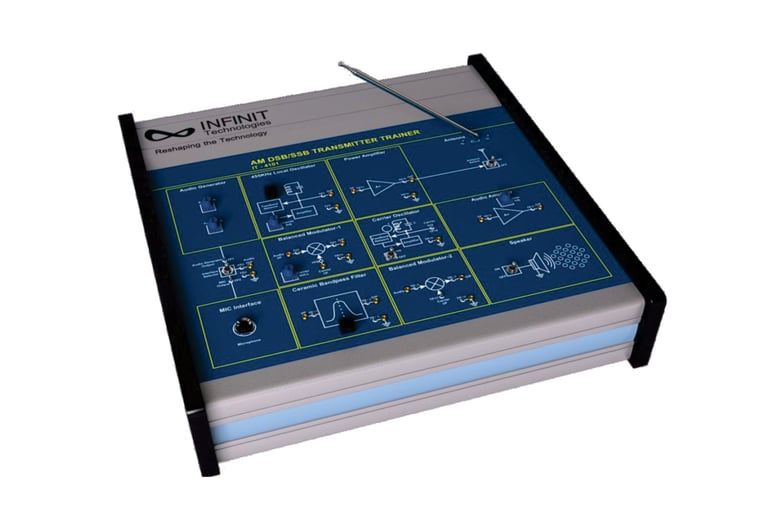

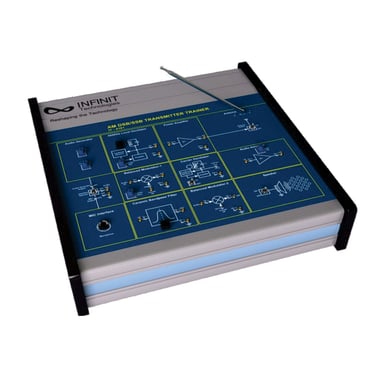

AM/DSB/SSB Transmitter Trainer
Telecommunication Products /
Experiments Included:
Understanding of IT-4101
AM DSB Modulation
AM SSB-SC Modulation
AM DSB-SC Modulation
Transmission of AM DSB-SC Modulated
Category: Telecommunication Products
IT-4101 is the comprehensive training system designed to analyze the DSB/SSB techniques used for Amplitude Modulation. The trainer consists of signal generator and Modulator section. It provides the full understanding of conventional Amplitude Modulation circuits. Trainer can transmit modulated signal at certain power level so signal is received by its receiver part.
For wired application 455KHz carrier is used. For transmission 1MHz carrier signal is used.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Each Section Works as an Independent Unit
Input Devices like microphone, Signal generator Included
Output Devices like Speaker Included
Technical Features:
Micro phone Input: Input through micro phone
Audio Generator: Frequency and Amplitude adjustable.
Modulator: Balanced Modulator for AM-DSB and AM-SSB
Local Oscillator: 455 Khz
SSB Filter: 450KHz Ceramic Bandpass Filter
Carrier Frequency: Adjustable 1 MHz oscillator
Transmitter: RF amplifier with antenna
Audio Amplifier: Monolithic with adjustable gain
Speaker: 8 Ohm
Interconnections: 2mm gold plated pins
Accessories: Experiment Manual, 2mm patch cords and Micro phone
