AM FM Radio Trainer
Experiments Included:
AM Radio Section
Audio Amplifier
Static Measurements
Dynamic Measurements
AM Detector and AGC Stage
Static Measurements
Dynamic Measurements
Second AM IF Amplifier
Static Measurements
Dynamic Measurements
First AM IF Amplifier
Static Measurements
Dynamic Measurements
AM Mixer, AM Oscillator and AM Antenna
Static Measurements
Dynamic Measurements
AM Alignment with Test Equipment
FM Radio Section
The FM Radio
Static Measurements
Dynamic Measurements
Second FM IF Amplifier
Static Tests
Dynamic Tests
First FM IF Amplifier
Static Tests
Dynamic Tests
FM RF Amplifier, Mixer, Oscillator and AFC Stage
FM Mixer Static Measurements
FM Mixer Dynamic Measurements
FM Oscillator Static Measurements
FM AFC
FM RF Amplifier Static Measurement
FM Final Alignments
Category: Telecommunication Technology Products

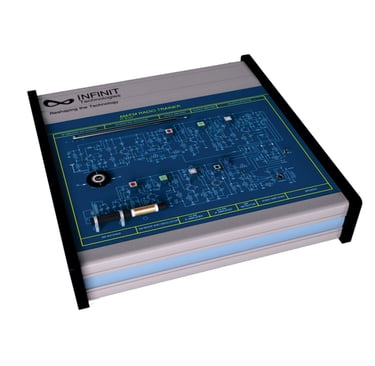

The AM/FM Radio Trainer is a “superheterodyne” receiver of the standard AM (amplitude modulation) and FM (frequency modulation) broadcast frequencies. The unique design of the trainer allows students to identify the parts over their corresponding symbol in the schematic drawing on the surface of the printed circuit board. This technique maximizes the learning process. The trainer is broken down into 9 sections. The theory of operation for each section, or stage, should be read before the experiments and alignment is started.
Features:
Power Supply Included
Required Circuits Tested
9 Sections Clearly Marked for Input and Output
Test Procedure given for each Section
Output Devices like Speaker Included
Technical Features:
AM Radio
Amplifier: Audio Amplifier IC Based
Detector: AM Detector Circuit with AGC Stage
IF Amplifier 1: Second AM IF Amplifier
IF Amplifier 2: First AM IF 2 Amplifier
Oscillator: AM Oscillator and Mixer
Antenna: Standard AM Antenna with stand
FM Radio
Detector: Ratio Detector
IF Amplifier 1: First FM IF Amplifier
IF Amplifier 2: Second FM IF Amplifier
Oscillator: FM Oscillator with mixer
Amplifier: FM RF Amplifier with AFC Stage
Antenna: FM Telescopic Antenna
Gang: AM/FM Gang for Tuning
Speaker: 8 Ohm
Accessories: Experiment Manual
