Analog/Electronic Training System
Experiments Included:
Application of Ohm’s Law
Series DC Circuit
Parallel DC Circuit
Diode Characteristics
Characteristics and Applications of Zener Diode
Diode in a DC Circuit
Half Wave Rectifier Circuit
Full Wave Rectifier Circuits with Center Tapped
Bridge Rectifier Circuits
Voltage Doubler Circuit
Characteristics of Light Emitting Diodes
Characteristics of Bipolar Junction Transistor
Characteristics of Field-Effect Transistor (FET)
Characteristics of Unijunction Transistor (UJT)
Characteristics of Programmable Unijunction Transistors (PUT)
Characteristics of Silicon Controlled Rectifier (SCR)
Characteristics of DIAC
Characteristics of TRIAC
Non-Inverting Amplifier Circuit
Inverting Amplifier Circuit
Differential Amplifier Circuit
Integrator Circuit
Differentiator Circuit
Low-Pass Filter Circuit
High-Pass Filter Circuit
Band-Pass Filter Circuit

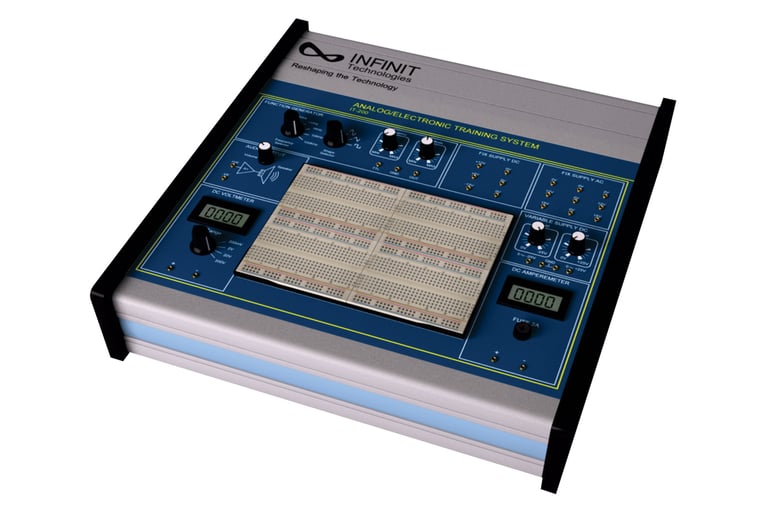

Analog / Electronic Trainer is a low cost Electronic teaching system. It is designed to provide all the basic tools necessary to conduct experiments related to Electronics Technology. It is also ideally suited for developing, debugging, integrating and testing systems.
Features:
Bread Board Based
Power Supplies Included
Basic Measuring Instruments Included
Flexibility to Perform Custom Experiments
Standard Function Generator Included
Protection Circuits Included
Technical Features:
Function Generator:
Duty cycle: 50%
Frequency range: up to 100KHz in five steps
Output: Sine, Square, Triangle and TTL
Variable Frequency Control
Variable Gain Control
Supplies:
FIX Supply DC: +5V DC, +12V DC, -12V DC
VARIABLE SUPPLY DC: 0 ~ +25V DC, 0 ~ -25V DC
FIX Supply AC: 2V-0-2V, 12V-0-12V, 15V-0-15V
3 ½-Digit Digital Voltmeter/Ammeter:
DC Voltage Range: 200mV, 2V, 20V, 200V
DC Current Range: 0 ~ 2A, Fuse Protected
Audio Amplifier:
With volume Control
State Monitor:
4x 3mm LED’s
Switches:
4x SPST switches
Speaker:
0.5W with amplifier
Solderless Breadboard:
2 Terminal Strips, Tie-point 1680
4 Distribution Strips, Tie-point 400
Accessories: 2mm-1mm patch cords, Power Cord, User Manual
Category: Electronics Technology
