Antenna Trainer
Experiments Included:
Study of Antenna Polarization, Axial Ratio And Tilt Angle of a Circularly Polarized Antenna
Study of Dipole Antenna And Its Radiation Pattern
Study of Rectangular Patch Antenna
Study of Circular Patch Antenna
Study of 4 Elements Rectangular Patch Antenna Array
To Study the Behavior of Loop Antenna
Study of 3-Element Yagi-Uda Antenna
Study of 5-Element Yagi-Uda Antenna
Study of 7-Element Yagi-Uda Antenna
Study of 5-Element Log Periodic Antenna
Study of 7-Element Log Periodic Antenna
Study of 9- Element Log Periodic Antenna
Study of Folded Dipole Antenna
Study of Monopole Antenna
Study of Half Wavelength Monopole Antenna
To Study Phase Array End Fire Antenna
To Study Quarter Wavelength Phase
Array End Fire Antenna
To Study Combined Co-Linear Array
To Study Broad Side Array
To Study Helical Antenna
Category: Telecommunication Technology Products

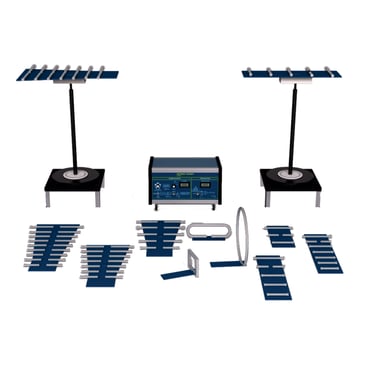

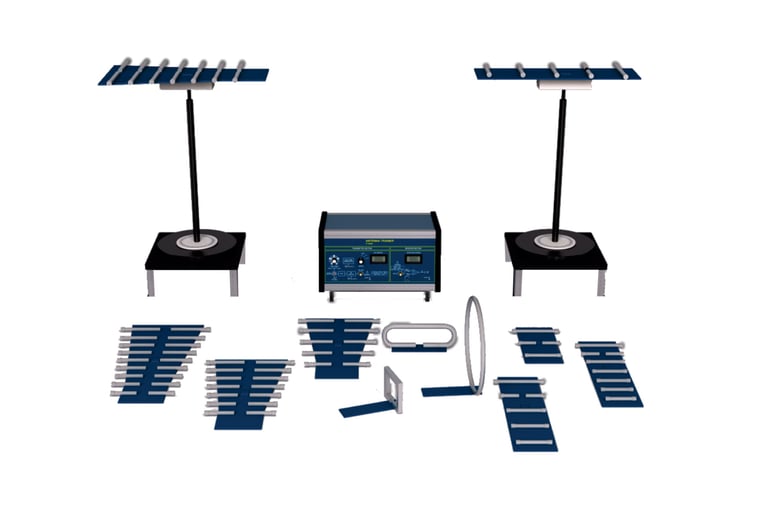

IT-8400 trainer introduces students to the fundamental principles of Antenna through a wide range of practical activities. A large variety of Antennas are included to familiarize the students with different types of Antennas. The most important topic covers in the experiment is to study of antenna using S-Band frequencies. The antenna trainer consists of different components and peripherals equipment required to perform the experiments.
Features:
Industrial Grade Equipment
Stable Source
Modular Structure
Technical Features:
VCO 2.2-2.72GHz (Tunable)
VCO 2.4GHz (Fixed)
Tuning Voltage: 1.2-16V DC
Display: V Tune, F.P. & R.P.
Modulation: 1KHz ASK
Output Power: +8dBm typical
RF Detector: 2-4GHz
Sensitivity: -5 ~ -45dBm typical, Comparator
Antenna Included with the Trainer:
Rectangular Patch
Circular Patch
2×2 Rectangular Patch Array
Monopole
Lambda/2 Dipole
Lambda/4 Dipole
Folded Dipole
Helix Antenna
3-Element Yagi-Uda
5-Element Yagi-Uda
7-Element Yagi-Uda
5-Element Log Periodic
7-Element Log Periodic
Circular Loop
Square Loop
Lambda/2 Monopole
3Lambda/2 Dipole
Lambda/2 Phase Array
Lambda/4 Phase Array
Broad Side Array
Combined Co-Linear Array
Fractal Antenna
Lambda/2 Sierpinsky Triangle Bow-Tie Antenna
Tapered monopole Antenna
Element Yagi-UDA Folded Dipole.
Folded Dipole (Receiver Antenna)
Lambda/2 Monopole (Receiver Antenna)
Accessories: Power cord, 2mm patch cord, Experiment manual, SMA male-male cable, 50 Ohm Terminator.
