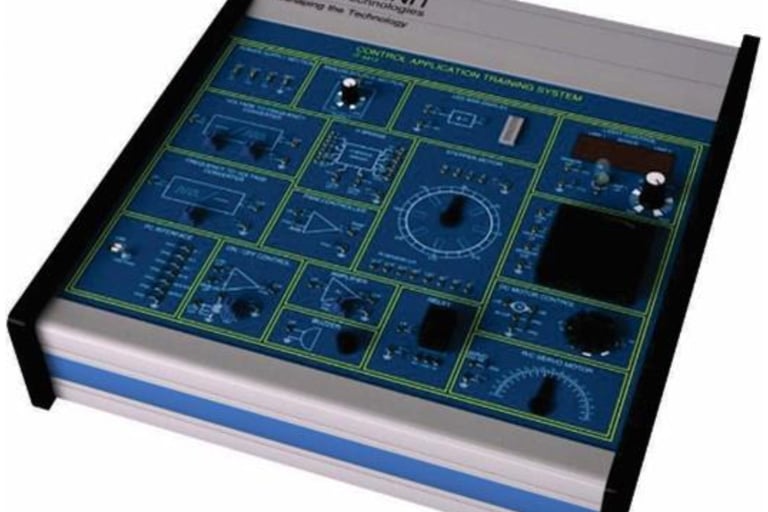

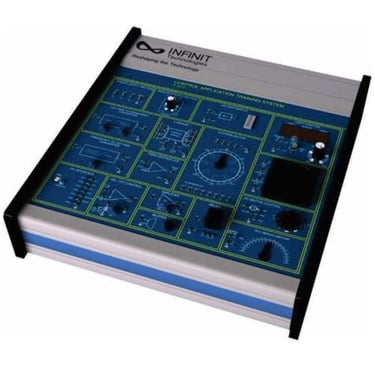

Control Application Training System
Experiments Included:
To Study and Observe LED Bar Display with Analog Source
To Study and Observe Voltage to Frequency Converter
To Study and Observe Frequency to Voltage Converter
Study of PWM Controller Using Analog Source
Study of ON/OFF Controller Using Analog Source
Study of Amplifier
To Study and Observe Characteristics of Photoconductive Cell (LDR)
To Study and Implement Light Intensity Control Using PWM Method
To Study and Implement Motor Speed Direction and Input Characteristics
To Study and Implement Tacho Generator Using F/V Converter
To Study and Implement Motor Control Using PWM Method
To Study and Implement Temperature Control Using Heater Fan
Experiments Performed Using
Servo motors plays a very important role in industry process. These servo motor can be AC or depending on the requirement IT-4420 contains a high speed high functionality AC servo driver and motor This driver can realize velocity response frequency of 3.2kHz and contribute to the development of a high-speed machine and drastic shortening of tact-time Standard line-up includes full-closed control and auto-gain tuning function and the motors with 23-bit encoder. The trainer also supports various applications and their requirements by featuring automated gain tuning function damping control which achieves a stable “Stop Performance” even in low-stiffness machine and high-speed motor.
Category: Automation and Control Technology
