Curve Tracer
Features:
Power Supplies Included
Required Waveform Generators Included
Current Limit Option Available
Polarity Control Option Available
Technical Features:
Collector Drain Sweep Voltage:
Frequency: 100Hz (2X line frequency)
Voltage: 11 steps, 5, 10, 20, 30, 40, 50, 60, 80, 100, 150 and 200V; accuracy + 10%
Sweep waveform: Full wave rectified
Current Limit: With current limiter, 0.5A maximum
Step Generator:
Number of steps: 7 (eight curves display)
Current per step: 0.1, 0.2, 0.5, 1.0, 2.0 mA; accuracy + 5%
Voltage per step: 0.1, 0.2, 0.5V; accuracy + 5%
Polarity switch:
Three modes of operation – NPN (n-channel), PNP (p-channel), DIODE
External Bias: One curve display

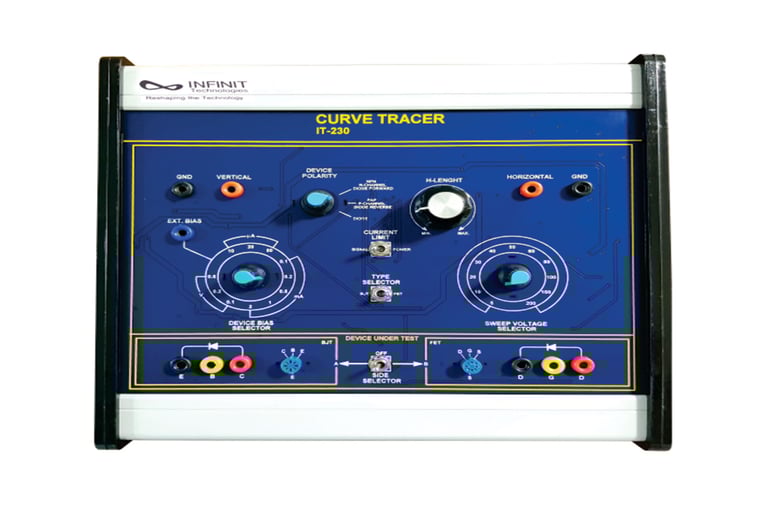

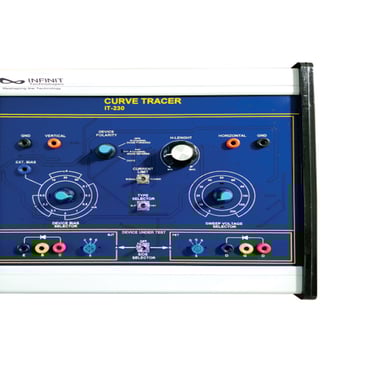

The model IT-230 Semiconductor Curve Tracer is a high-performance test instrument. By combining the IT-230 with general-purpose scope, characteristic curves of all types of semiconductors can be accurately displayed.
