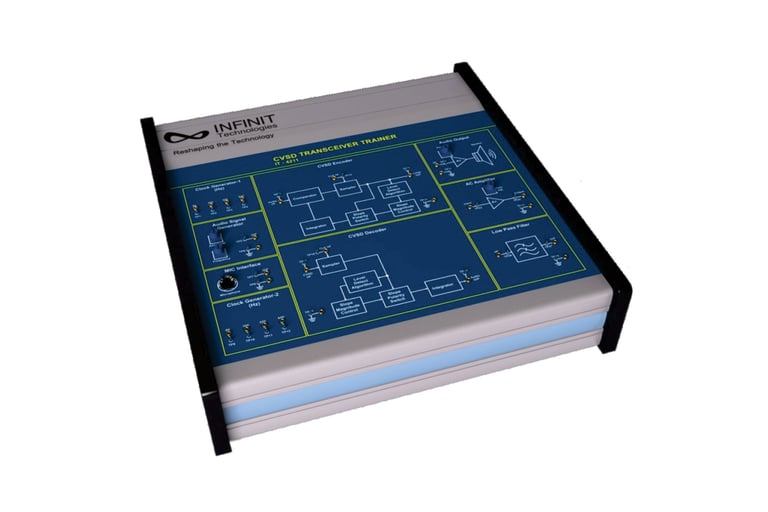

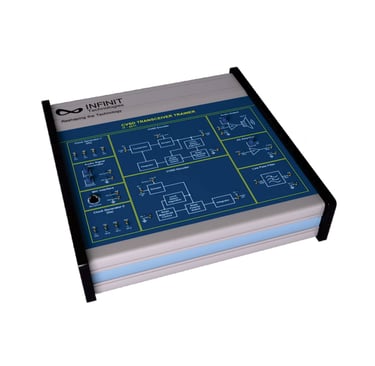

CVSD Transceiver Trainer
Experiments Included:
Study of CVSD Encoding
Study of CVSD Encoding and Decoding
Study of CVSD Encoding and Decoding with Microphone
Category: Telecommunication Technology Products
The Continuously Variable Slope Delta Modulator (CVSD) is a simple alternative to more complex conventional conversion technique, like PCM, in systems requiring digital communication of analog signals. The CVSD A-D conversion is well suited to the requirements of digital communications and is an economically efficient means of digitizing analog inputs for transmission. This trainer explores the functionality of CVSD Encoding / Decoding technique. All required sections are provided on board like, clock generator, audio generator, microphone interface, low pass filter, audio output and ac amplifier.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Each Section Works as an Independent Unit
Built-in CVSD Encoder/Decoder
Built-In Clock Generators
Built-In AC Amplifier
Each Section Clearly Marked for Easy Understanding
Technical Features:
Clock Generator: 8K, 16K, 32K, 64K
Audio Signal generator: adjustable frequency & gain
Encoder: CVSD
Decoder: CVSD
Low Pass Filter: 5th Order Butterworth Filter with 3.4KHz cut off
Amplifier: AC amplifier with variable gain
Audio Amplifier: Monolithic amplifier with speaker
Voice interface: microphone
