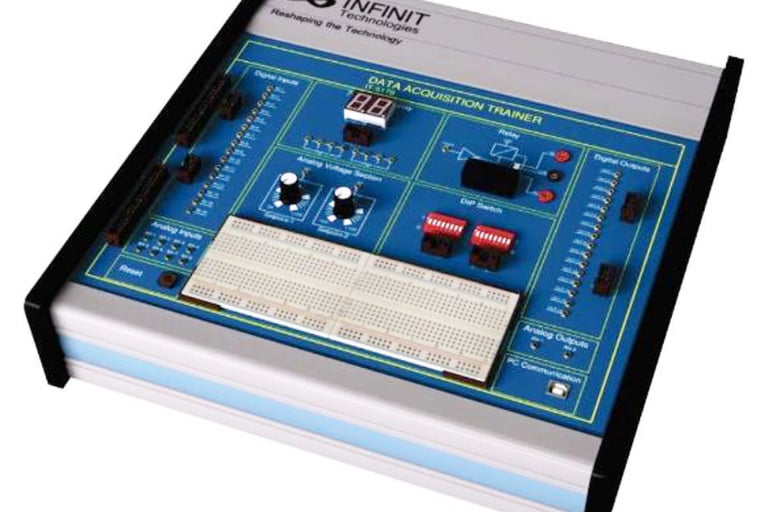

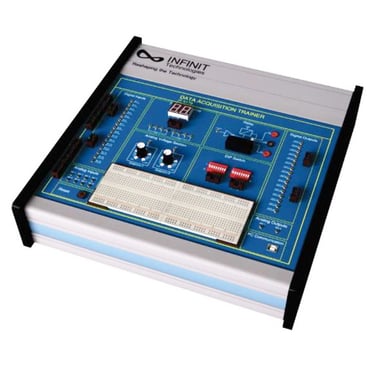

Data Acquisition Trainer
Experiments:
Control Circuits Installed
Protection Circuits Installed
Analog Sources Installed
Display Devices Installed
Technical Features:
Processor: 8-bit RISC based
Digital In: 16 Channel
Digital Out: 16 Channel
Analog In: 8-Channel Multiplexed
A/D Converter: 10-Bit
Analog Out: 8-Channel
D/A Converter: 8-Bit Serial SPI
Analog Voltage Source: +10V, ±10V Adjustable
Relay: +15V SPDT
Display: 2X 7-Segment with BCD-7-Segment Decoder/ Driver
Switches: 2X 8-Bit DIP Switches
PC Interface: USB-UART with Data Acquisition Software
Data acquisition (DAQ) is the process of measuring an electrical or physical phenomenon such as voltage, current, temperature, level, flow, pressure or sound with a computer. Data Acquisition Trainer consists of A/D converters and D/A converters to measure the input from different sensors. Data Acquisition Trainer is accompanied with a powerful Graphical Software to represent the values, acquired from sensors, in real time.
Category: Automation and Control Technology
