Data Communication Trainer
Experiments Included:
Understanding Serial Port
Understanding Synchronous & Asynchronous Serial Communication
Understanding Null Modem used in Serial Communication
Understanding PC to PC Serial Communication
Understanding Fiber Optic Communication
Half Duple
Full Duplex
Understanding Wireless Communication
Understanding Modem Communication
Understanding Flow Control in Serial Communication
Understanding the Protocols used in Serial Communication
Understanding PIN Outs of Parallel Port
Category: Telecommunication Technology Products

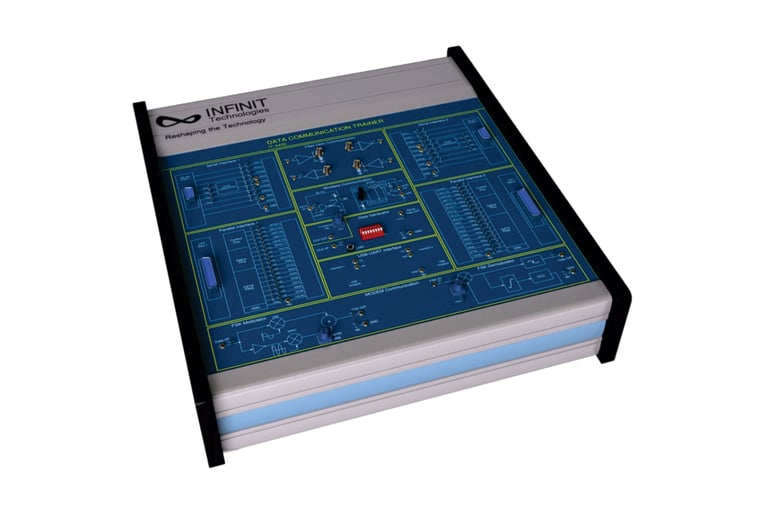

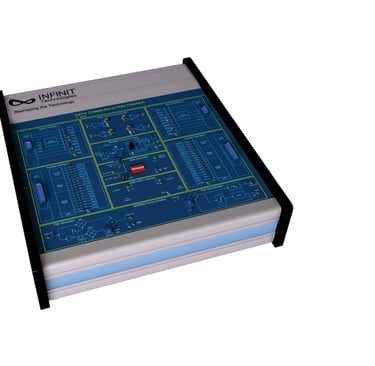

IT-4402 is designed to assist students and practitioners to understand the various methods of data transmission between two computers. The user can perform number of experiment on trainer relating to base band data transmission like wire link, optical fiber link and wireless link through serial port to observe data transmission from one PC to another. Moreover user can also understand the technique relating to modulated data transmission like FSK Modem through serial port to observe data transmission from one PC to another. In depth knowledge of ports and its functional details can be studied with the use of the supporting software provided. Manuals and notes help the user to understand the major terminologies and theory related to Data Communication.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Each Section Works as an Independent Unit
Built-In Clock Generator
Built-in Data Generator
Each Section Clearly Marked for Easy Understanding
Technical Features:
Serial Communication: RS-232 protocol using DB-9 connector
PC-PC communication using USB-UART interface
Parallel Communication: Using LPT protocol
Fiber Optic Transmitter: Dual Photo LEDs
Fiber Optic Receiver: Dual Photo detectors
Core type: Step indexed multimode PMMA plastic cable
Infrared Transmitter: IR LED
Infrared Receiver: Universal IR Receiver
Data generator: 8-Bit NRZ type
Modulation: FSK Modulation
Carrier: 300 KHz
FSK Demodulation: Tone Decoder
Interconnections: 2mm gold plated pins
Accessories: USB Cable, DB25 Parallel Port cable, Plastic Fiber Cable, Operating Manual, Software CD, 2mm patch cords, DB9 serial port cable
