Data Encoding Decoding Trainer
Experiments Included:
Unipolar & Bipolar NRZ signal Encoder
Unipolar & Bipolar RZ signal Encoder
AMI signal Encoder
Manchester signal Encoder
Unipolar & Bipolar NRZ signal Decoder
Unipolar & Bipolar RZ signal Decoder
AMI signal Decoder
Manchester signal Decoder
Category: Telecommunication Technology Products

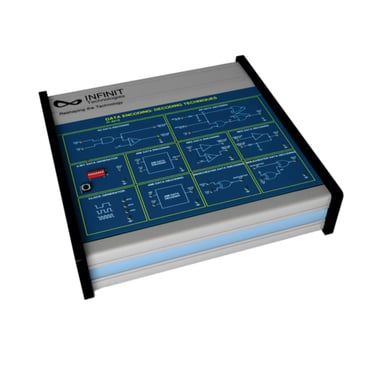

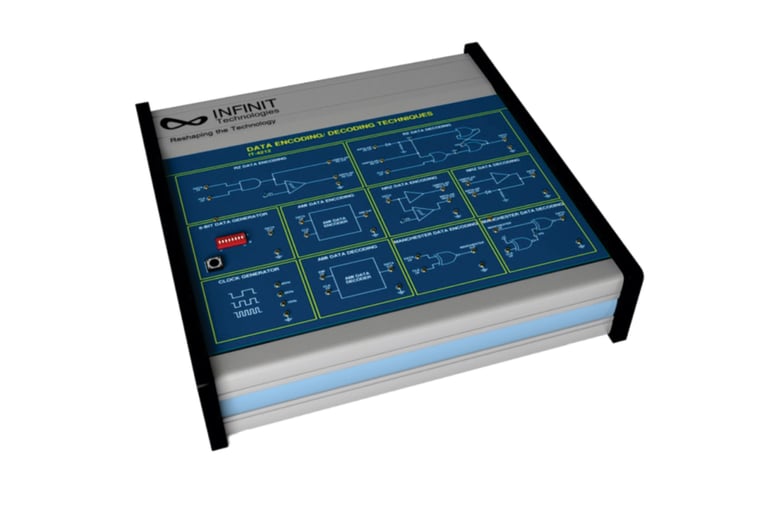

This trainer explores into the concept of data encoding & decoding techniques. RZ, NRZ, Manchester and AMI data encoding and decoding techniques are explored. All the necessary components like TTL data generator and clock generators are provided on board.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Each Section Works as an Independent Unit
Built-In Clock Generator
Built-In Data Generator
Technical Features:
Clock Frequency: 1KHz, 2KHz & 4KHz
Data Generator: 8-bit TTL
Data Encoder Types: RZ, NRZ, Manchester, AMI
Data Decoder Types: RZ, NRZ, Manchester, AMI
Interconnections: 2 mm gold plated pins
Accessories: Power cord, Experiment Manual and 2mm patch cords
