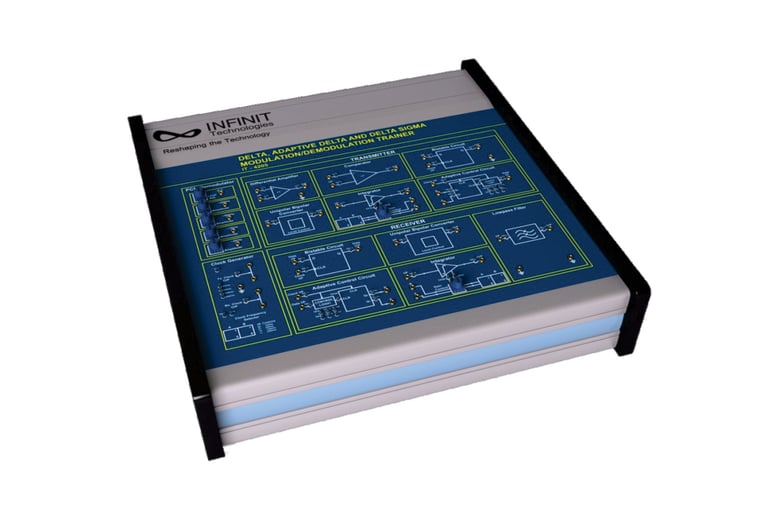

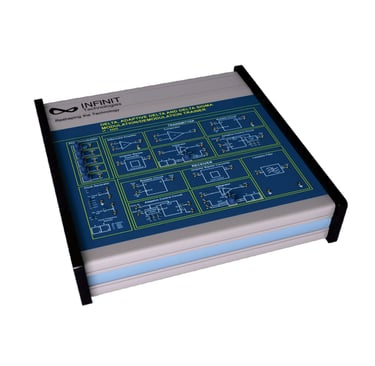

Delta Adaptive Delta and Delta Sigma Transceiver Trainer
Experiments Included:
Study of Delta Modulation / Demodulation
Study of Adaptive Delta Modulation and Demodulation
Study of Delta Sigma Modulation and Demodulation
Category: Telecommunication Technology Products
In Digital Communication specially operating at low frequencies or for speech communication bandwidth can be saved using Delta Modulation and its associated techniques because this requires single encoding of sampled signal. This Trainer covers Delta, Adaptive Delta and Delta Sigma Modulation and Demodulation.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Each Section Works as an Independent Unit
Built-in Audio Generators
Built-In Clock Generators
Each Section Clearly Marked for Easy Understanding
Technical Features:
Sampling Clock Frequency: 32, 64, 128 & 256KHz selectable
Audio Generator: 1 KHz, 2 KHz, 500Hz, 250Hz & Variable D.C. Level
Integrator: Integrators with adjustable gain
Low Pass Filter: 5th Order Butterworth (3.4KHz)
Interconnections: 2 mm gold plated pins
Accessories: Experiment Manual, 2mm patch cords and power cord
