Digital / Analog Training System
Experiments Included:
Analog Section:
Application of Ohm’s Law
Series DC Circuit
Parallel DC Circuit
Diode Characteristics
Characteristics and Applications of Zener Diode
Diode in a DC Circuit
Half Wave Rectifier Circuit
Full Wave Rectifier Circuits with Center Tapped
Bridge Rectifier Circuits
Voltage Doubler Circuit
Characteristics of Light Emitting Diodes
Characteristics of Bipolar Junction Transistor
Characteristics of Field-Effect Transistor (FET)
Characteristics of Unijunction Transistor (UJT)
Characteristics of Programmable Unijunction Transistors (PUT)
Characteristics of Silicon Controlled Rectifier (SCR)
Characteristics of DIAC
Characteristics of TRIAC
Non-Inverting Amplifier Circuit
Inverting Amplifier Circuit
Differential Amplifier Circuit
Integrator Circuit
Differentiator Circuit
Low-Pass Filter Circuit
High-Pass Liter Circuit
Band-Pass Filter Circuit
Digital Section:
AND Gate Operation
OR Gate Operation
NOT Gate Operation
NAND Gate Operation
NOR Gate Operation
XOR Gate Operation
Construction of XOR Gate from NAND Gate
Half Adder Operation
Full Adder Operation
Half Subtractor Operation
Full Subtractor Operation
7-Segment Display Operation
Decoder Operation
BCD to 7-Segment Display
Multiplexer Operation
Using Multiplexer and Demultiplexer/Decoder
Multiplexing 7-Segment Displays
Comparator Operation
D Latch and Flip Flop Operation
Latching BCD Data for Displaying 7-Segment Display
Re-circulating Data
J-K Flip Flop Operation

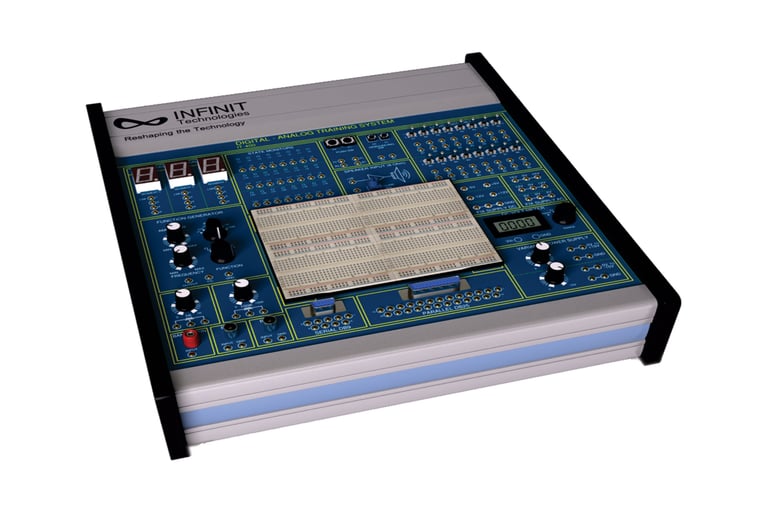

IT-400 is a comprehensive and self-contained system suitable for anyone engaged in Digital and Analog circuit experiments. All necessary equipment for Digital and Analog circuit experiments such as power supply, function generator, Data Switches, LEDs, Logic Probe, 7-Segment Displays etc are installed on the main unit. The Bread board allows students to perform a wide variety experiments relating to essential topics in the field of digital and analog circuit. It is a time and cost saving device for both students and researchers interested in developing and testing circuit prototypes.
Features:
Bread Board Based
Power Supplies Included
Basic Measuring Instruments Included
Flexibility to Perform Custom Experiments
Output Devices like LEDs and 7-Segment Included
Input Devices like Push Switches, Toggle Switches Included
Standard Function Generator Included
Passive Components Included
Protection Circuits Included
Technical Features:
Supplies:
Fixed DC: +5V, -5V, +12V, -12V
Dual DC Power Supply: 0 ~ +15V and 0 ~ -15V adjustable
FIX Supply AC: 2V-0-2V, 12V-0-12V, 15V-0-15V
Function Generator:
Output Waveform: Sine, Square, Triangle and TTL
Output Frequency: up to 100KHz in five steps
3 ½-Digit Digital Voltmeter:
Volt ranges 200mV, 2V, 20V, 200V
Data Switch:
16-bit switch with TTL Output
Push Switch
Two independent Switches
Each with Q, Q’ output
De-Bounce Switch
Logic Indicator
24 independent LEDs indicate high and low logic state
Digital Display
3 independent 7-segment LED display with BCD to 7-segment decoder/driver input with 8-4-2-1 code
Potentiometer:
Carbon Track 1K and 100K
Interface Connectors
2X BNC Connectors interfaced to 2mm gold plated pins
1X Banana Connector interfaced to 2mm gold plated pin
DB-9 Connector with all pins interfaced to 2mm gold plated pins
DB-25 Connector with all pins interfaced to 2mm gold plated pins
Solderless Breadboard:
2 Terminal Strips, Tie-point 1680
4 Distribution Strips, Tie-point 400
Audio Output
0.5W Speaker with Audio Amplifier and Volume Control
Accessories: 2mm-1mm patch cords, Power Cord, User Manual
