Digital Logic Training System
Experiments Included:
AND Gate Operation
OR Gate Operation
NOT Gate Operation
NAND Gate Operation
NOR Gate Operation
XOR Gate Operation
Construction of XOR Gate from NAND Gate
Half Adder Operation
Full Adder Operation
Half Subtractor Operation
Full Subtractor Operation
7-Segment Display Operation
Decoder Operation
BCD to 7-Segment Display
Multiplexer Operation
Using Multiplexer and Demultiplexer/Decoder
Multiplexing 7-Segment Displays
Comparator Operation
D Latch and Flip Flop Operation
Latching BCD Data for Displaying 7-Segment Display
Re-circulating Data
J-K Flip Flop Operation

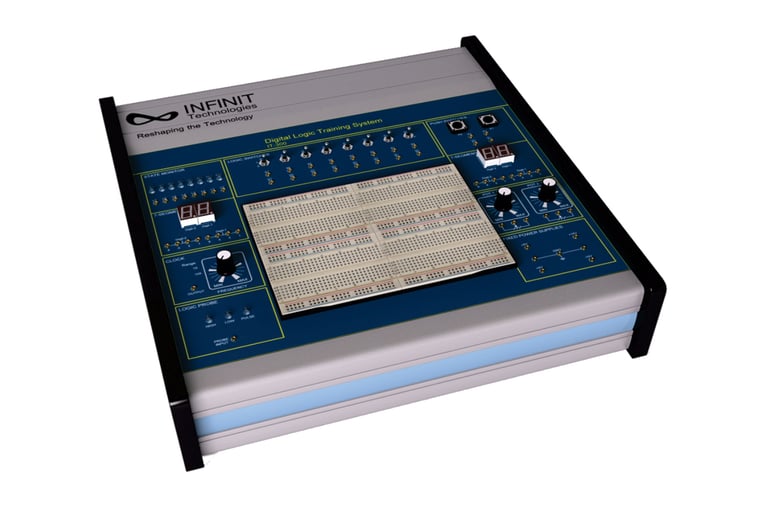

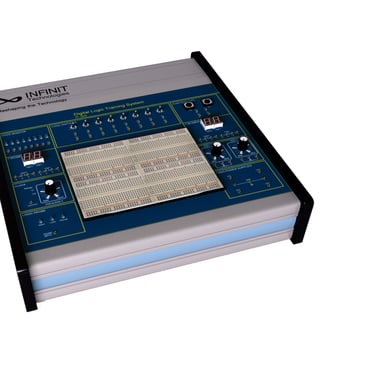

IT-300 Digital Logic Training System is a comprehensive and self-contained system suitable for students engaged in digital logic experiments. All necessary equipment for digital logic experiments such as power supply, clock generator, switches and displays are installed on the main unit. Breadboard allows students to experiment with essential topics in the field of digital logic. It is a time and cost saving device for both students and researchers interested in developing and testing circuit prototypes.
Features:
Bread Board Based
Power Supplies Included
Basic Measuring Instruments Included
Flexibility to Perform Custom Experiments
Output Devices like LEDs and 7-Segment Included
Input Devices like Push Switches, Toggle Switches Included
Passive Components Included
Protection Circuits Included
Technical Features:
DC Power Supply: +5V, +15V, -15V
Clock Generator: 1Hz – 64Hz
Logic Switch: 8-bit switch with complimentary TTL outputs
Push Switch: 2 independent switches, each with Q, Q’ output
State Monitors: 8 independent LEDs to indicate high and low logic state
Potentiometers: Carbon Track, 1K and 10K
7-Segment Display: Four 7-segment LED displays with BCD to 7-segment decoder/driver
Logic Probe: “LO” and “HI” LED display low and high state respectively
Solderless Breadboard:
2 Terminal Strips, Tie-point 1680
4 Distribution Strips, Tie-point 400
Accessories: 2mm patch cords, Power Cord, User Manual
Category: Electronics Technology
