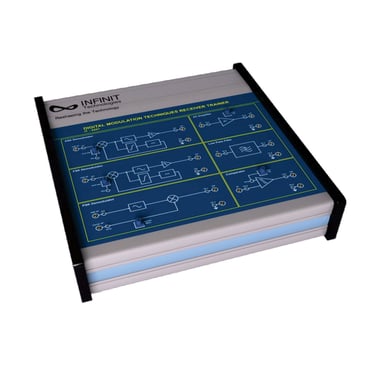

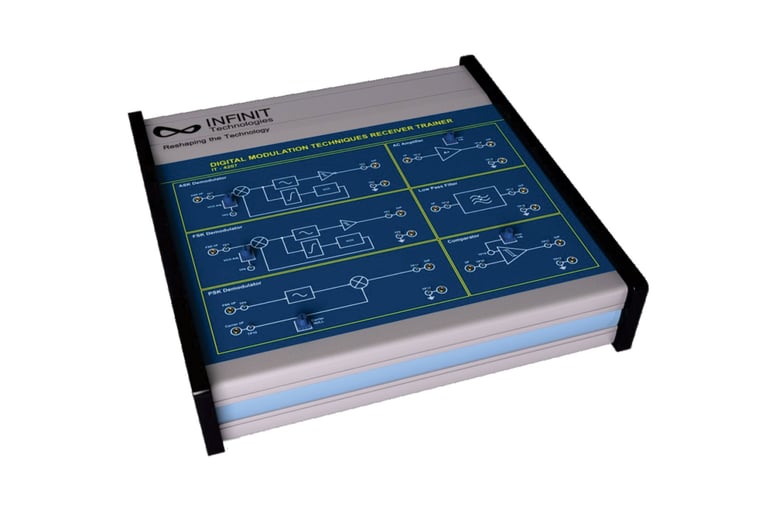

Digital Modulation Techniques Receiver Trainer
Experiments Included:
Familiarization
ASK De-Modulation
FSK De-Modulation
BPSK De-Modulation
ASK, FSK, BPSK Modulation / De-modulation using PC
Category: Telecommunication Technology Products
This is counter part to Digital Modulation Technique Trainer. It explores the techniques used to De-modulate the received signal in FSK, ASK and BPSK. All components needed are provided on board. PC-PC link is established using USB-UART converter.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Each Section Works as an Independent Unit
Built-in AC Amplifier
Each Section Clearly Marked for Easy Understanding
Technical Features:
Input: ASK, FSK and BPSK modulated signal
Demodulation Types: ASK Tone decoder, FSK Tone Decoder and BPSK Phase Detector
Low Pass Filter: 5th Order Butterworth
AC Amplifier: Amplifier with adjustable gain
Comparator: Used as Digital Data Squarer
Interconnections: 2 mm gold plated pins
Accessories: Experiment Manual, 2mm patch cords and power cord, USB cable
