Electricity & Magnetism Lab
Features:
Standard Function Generator Included
AC/DC Power Supplies Included
Basic Measuring Instruments Included
Passive Components Required are Mounted on Modules
Active Components Required are Mounted on Modules
Protection Circuits Included
Technical Features:
Main Unit
Fixed DC: +5V, -5V, +12V, -12V
Maximum Current Output: 0.3A
Dual DC Power Supply: 0 ~ +25V and 0 ~ -25V adjustable
AC Power Supply
Voltage Range: 2V-0V-2V, 12V-0V-12V, 15V-0V-15V
Maximum Current Output: 500mA
Function Generator:
Output Waveform: Sine, Square, Triangle and TTL
Output Frequency: up to 100KHz in five steps
3 ½-Digit Digital DC Volt Meter:
Voltage range :200mV, 2V, 20V, 200V
3 ½-Digit Digital DC Ammeter:
0 ~ 2A, Fuse Protected
Audio Amplifier:
With Volume Control
Speaker:
0.5W with Amplifier
Resistive Load:
Wire Wound 2.2K

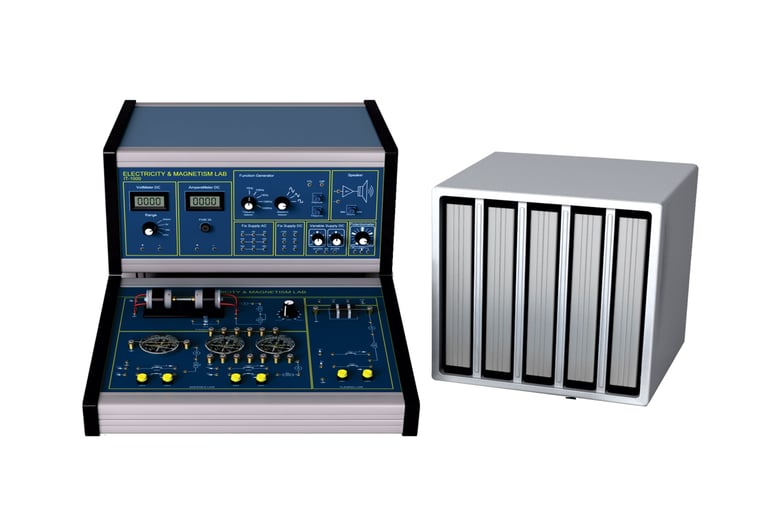

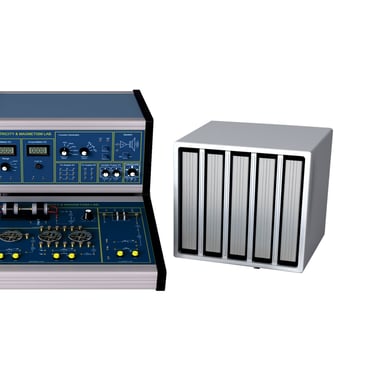

IT-1000 is a comprehensive and self-contained system suitable for tuition and experimentation with electricity circuits. All necessary equipments for electricity circuit experiments such as power supply, function generator, measuring instruments are installed on the main unit. The 8 modules cover a wide variety of essential topics in the field of electricity circuit. It is indeed a time and cost saving system for both students and researcher interested in training, developing and testing circuit prototypes.
Accessories: Experiment Manual, User Manual, 2mm Patch Cords, Power Cord, Magnet Bar, Inductors: 0.1H, 0.5H
Optional Data Interface Unit:
IT-1600 – PC Based Oscilloscope with Digital Interface
IT-1700 – PC Interface with Virtual Instrumentation
ModuleExperimentsIT-1001
Resistor Characteristics
Using An Ohmmeter
DC Voltage Measurement
DC Current Measurement
Ohm’s Law
Power in DC Circuit
Series-Parallel Network and Kirchhoff’s Law
Superposition, Thevenin’s and Norton’s Theorems
Maximum Power Transfer Theorem
DC RC Circuit and Transient Phenomena
AC Voltage Measurement
AC Current Measurement
AC RC Circuit
AC RL Circuit
AC RLC Circuit
Power in AC Circuit
Transformer Characteristics
Series-Resonant Circuit
Parallel-Resonant Circuit
LC Filter
Magnetic Devices
IT-1002
Magnetic Field
Drawing Magnetic Curves
Magnetic Field Strength
Lenz’s and Faraday’s Law
IT-1003
Ampere’s Rule
Fleming’s Rule
IT-1004
Self Induction
Mutual Induction
Magnetic Flux Detection
IT-1005
Diode Characteristics
Rectifier Circuit
Filter Circuit
Zener Diode Characteristics
LED Characteristics
Transistor Characteristics
Multimeter Functions
FET Characteristics
SCR Characteristics
UJT Characteristics
Wheatstone Bridge
IT-1006
Simple Amplifier
Complementary Amplifier
Voltage Regulator
Dimmer Circuit
Multistage Cascading Amplifier
Relay Characteristics
Touch-controlled Switch
IT-1007
CDS Characteristics
Light-controlled Circuit
Thermistor Characteristics
Temperature-controlled Circuit
Sound-controlled Circuit
IT-1008
Blocking Oscillator
Electronic Birdcall Circuit
LC Resonant Circuit
Push-Pull Amplifier
IT-1009
Interconnection: 2mm Gold Plated
Solderless Breadboard:
2 Terminal Strips, Tie-point 1680
4 Distribution Strips, Tie-point 400
