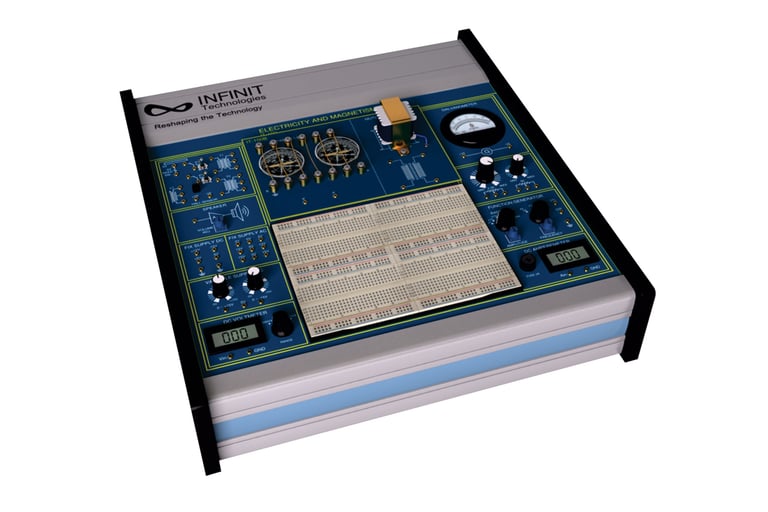

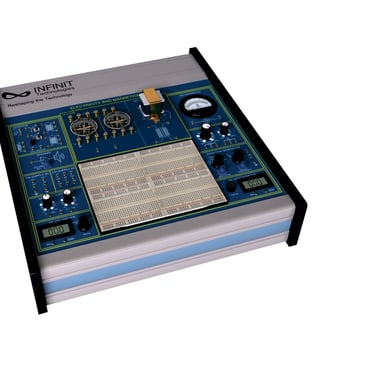

Electricity & Magnetism Training System
Experiments Included:
Resistor Characteristics
DC Current Measurement
Ohm’s Law
Power in DC Circuit
Series-parallel Network and Kirchhoff’s Law
Superposition, Thevenin’s and Norton’s the Theorems
Maximum Power Transfer Theorem
DC RC Circuit and Transient Phenomena
AC Voltage Measurement
AC Current Measurement
AC RC Circuit
AC RL Circuit
AC RLC Circuit
Power in AC Circuit
Transformer Characteristics
Series-Resonant Circuit
Parallel-Resonant Circuit
LC Filter
Diode Characteristics
Rectifier Circuit
Filter Circuit
Zener Diode Characteristics
LED Characteristics
Transistor Characteristics
Multimeter Functions
FET Characteristics
SCR Characteristics
UJT Characteristics
Wheatstone Bridge
Operating principle of magnetic-flux-density sensor
Application of the magnetic flux detector circuit
Operating principle of LC oscillators
Operate the circuit of Hartley oscillator
Operating principle of blocking oscillator
Voltage waveforms of blocking oscillator
Application of blocking oscillator
Operation of an electronic birdcall circuit
Electricity & Magnetism Trainer is a low cost teaching system. It is designed to provide all the basic tools necessary to conduct experiments related to Electricity & Magnetism. It is also ideally suited for developing, debugging, integrating and testing systems.
Features:
Bread Board Based
Power Supplies Included
Basic Measuring Instruments Included
Flexibility to Perform Custom Experiments
Passive Components Included in Modular Form
Active Components/Circuits Included
DC Motor, Coils and Transformers etc. Included
Standard Function Generator Included
Protection Circuits Included
Technical Features:
Function Generator:
Duty cycle: 50%
Frequency range: up to 100KHz in five steps
Output: Sine, Square, Triangle and TTL
Variable Frequency Control
Variable Gain Control
Magnetic Devices: Hall Sensor
Potentiometer: 2.2K & 1K
Galvanometer: Analog Scale
Transformers: Audio Input, Audio Output
FIX Supply DC: +5V DC, -5V DC, +12V DC, -12V DC
Variable Supply DC: 0 ~ +25V DC, 0 ~ -25V DC
FIX Supply AC: 2V-0-2V, 12V-0-12V, 15V-0-15V
3 ½-Digit Digital Voltmeter/Ammeter
DC Voltage Range: 200mV, 2V, 20V, 200V
DC Current Range: 0 ~ 2A, Fuse Protected
Audio Amplifier: With volume Control
Solderless Breadboard:
2 Terminal Strips, Tie-point 1680
4 Distribution Strips, Tie-point 400
Accessories: 2mm patch cords, Power Cord, User Manual
Optional Daughter Cards
IT-100A Add-On Card
2xSPDT Switch, Reed Switch, 2x12V Lamp, 12V SPDT Relay, Reed Relay and Solid State Relay(SSR)
Experiments:
Mechanical construction of an electromagnetic relay.
How to use a relay.
Applications of magnetic field.
Magnetic devices in alarm circuits.
Mechanical construction of a Reed Relay.
How to use a Reed Relay.
Mechanical construction of a SSR Relay.
How to use a SSR Relay.
IT-100B Add-On Card:
Air Core Coil, Fleming’s Left Hand Rule, Self Induction Coil
Experiments:
Lenz’s Law in electromagnetic induction.
Faraday’s Law in electromagnetic induction.
Self-induction of a coil.
Phenomenon of self-induction.
Fleming’s left-hand rule.
Fleming’s right-hand rule.
IT-100C Add-On Card:
Plunger Relay, Motor Generator Set
Experiments:
Magnetic field strength around a coil.
Factors for producing a magnetic field.
Fleming’s left-hand rule using.
Fleming’s Law Application.
Fleming’s right-hand rule using Fleming’s Law Application.
IT-100D Add-On Card:
Ampere’s Law, Mutual Induction Coil
Experiments:
Right-hand rule (Ampere’s Law) by using a single wire.
Right-hand rule (Ampere’s Law) by using a coil.
Mutual-induction between coils.
Phenomenon of mutual-induction.
