Electricity, Electromagnetism & Electrolysis Training System
Experiments Included:
Magnet
Magnet field
Magnet flux and induction
Electromagnet
Mobile iron device
Ferromagnetic materials Saturation
Magnetic circuits
Action of a magnetic field on a conductor and a loop in which the current flows
Electric motor
Electrodynamics actions
Electromagnetic induction
Faraday`s law – Lenz’s law
E.M.F. of self induction
E.M.F. of mutual induction
Electric current
Direct current
Electromotive force (E.M.F.) of a generator
Difference of potential or electric voltage
Ohm`s law
Electric resistor
Electric resistivity
Non-ohmic resistor
Voltage drop
Internal resistance of a generator
Series and parallel generators
Series and parallel resistances
Electric power and energy
Potentiometer
Current shunt
Second law of Kirchhoff
Analysis of an electric network through Kirchhoff’s laws
Mesh currents
Effect superposition
The venin’s theorem
Efficiency
Norton`s theorem
The relay
Joule effect
Thermoelectric effect
Eddy currents
Electric field, Condenser, Capacitance
Single phase alternate current
Pure resistance
Pure inductance
Pure capacitance
Phase shift between two signals
Series RL and RC circuits
Active, reactive and apparent power
Series resonance
Inductive ballast depending on frequency
Capacitive ballast depending on frequency
Parallel RL and RC circuits
Series and parallel condensers
Low profile transformer
Electrolysis dissociation and conduction in solutions

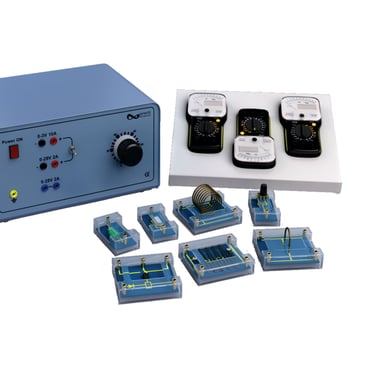

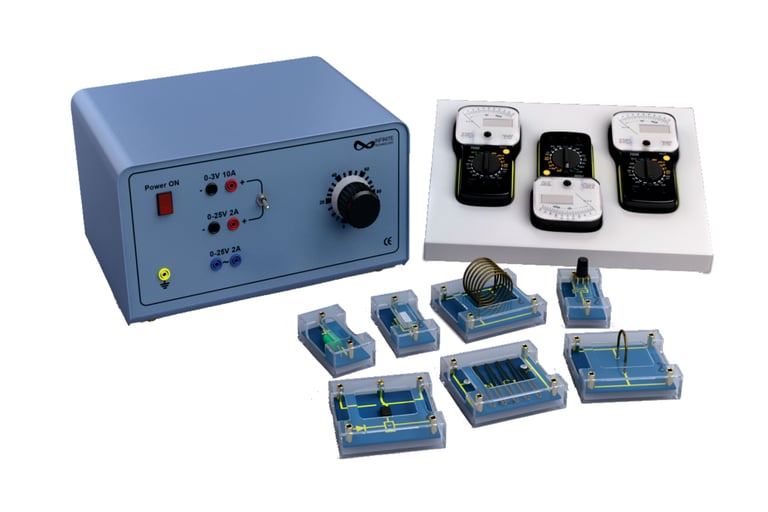

Electricity, Electromagnetism and Electrolysis Trainer is a versatile training system that contains different components mounted on a plastic base with connecting terminals. This allows the teachers to design custom experiments as per curriculum requirement. This training system covers topics related to Electricity, Electromagnetism and Electrolysis. Students can understand the laws of electricity and electromagnetism in a simple manner. A wide range of experiments are included with the training system.
Features:
Power Supplies Included
Multimeter Included for Measurement
Flexibility to Perform Custom Experiments
Passive Components Mounted on Plastic Modules
Active Components Mounted on Plastic Modules
Coils and Transformers Mounted on Plastic Modules
Protection Circuits Included
Technical Features:
Variable Power Supply:
0 ~ 3VDC @10A
0 ~ 25VDC @2A
0 ~ 25VAC @2A
Each section equipped with fuse protection
Multimeter:
General purpose accurate multimeter with analog scale to measure DC/AC current, voltage and resistance. Large display with mirror scale for accurate reading.
Display: Analog
AC/DC Voltage: 0.2/2/20/200/600V
AC/DC Current: 0.2mA/2mA/20mA/200mA/10A
Resistance: 200/2K/20K/200K/2M/20M Ohm
Battery test:1.5V (100 mA) / 9V (10 mA)
Diode test: Test current 1 mA; test voltage 2.4V
Continuity test: acoustic signal for R< 30 Ohm
Supply: Battery 9V
Components Mounted on Plastic Base Included:
Resistance:120R-5W, 330R-5W, 220R-5W, 12R-5W, 1K-2W, 2.7K-2W, Potentiometer 1K, Nickel Copper (NiCu) Wire & Nickel Chromium (NiCr) Wire
Capacitor 250V: 2.2uF, 1uF & 3.3uF
Conductor: Straight, Single Loop, 9-turn solenoid & flexible loop
24V Lamp, 5W
Coil / Transformer:
1:1 Coil with 500 turns, 1:2 Transformer @ 2VA, Inductance 1000 turn & Eddy Current Brake Transformer
2×1.5V Battery with Holder
Small Compass
Iron Fillings
Alnico Rectangular Magnet Pair
Breaking Pendulum Assembly
Moving Iron Instrument
Hot Wire Ammeter
Iron Core
Aluminum Core
Iron Cylinder
Moving Coil Device
Thermocouple J-Type (Fe-NiCu)
Single Pole Double Throw (SPDT) Switch
Relay
Jar for Solution
Stainless Steel Electrode
Brass Electrode
Copper Sulphate (CuSO4) Crystals
Iron Filings
Plastic Stirrer
Small Compass
