Flow Control Trainer
Experiments:
Study of the Flow Sensor
Study of the Characteristics of the Pump and of the Motorized Valve
Study of the characteristics of the static process and of the time constants
P, PI, PD and PID Closed Loop Control of the Flow

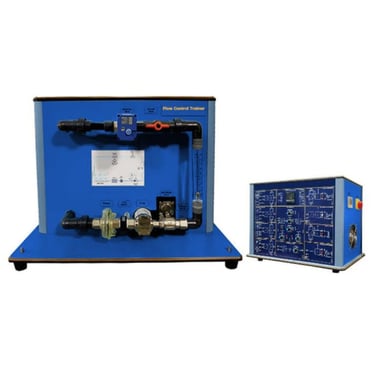

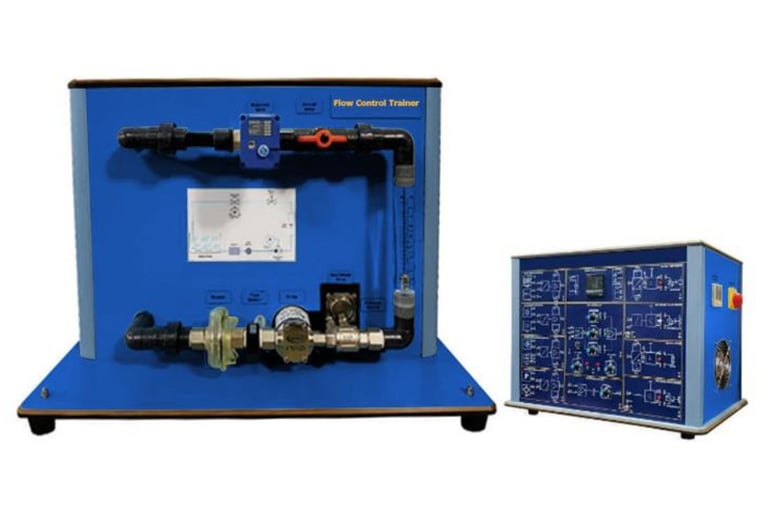

Flow Control Trainer contains an educational board with a vessel and a set of sensors and actuators for Flow. A control module, containing the interface circuits for the sensors and the actuators and the ON/OFF, proportional, integral and derivative control circuits (PID)
Category: Automation and Control Technology
