Frequency Modulation - Demodulation Trainer
Experiments Included:
Study Frequency Modulation using Varactor Modulator
Study Frequency Modulation using Reactance Modulator
Study Operation of Detuned Resonant Circuit
Study Operation of Quadrature Detector
Study Operation of Phase-Locked Loop Detector
Study Operation of Foster – Seeley Detector
Study Operation of Ratio Detector
Category: Telecommunication Technology Products

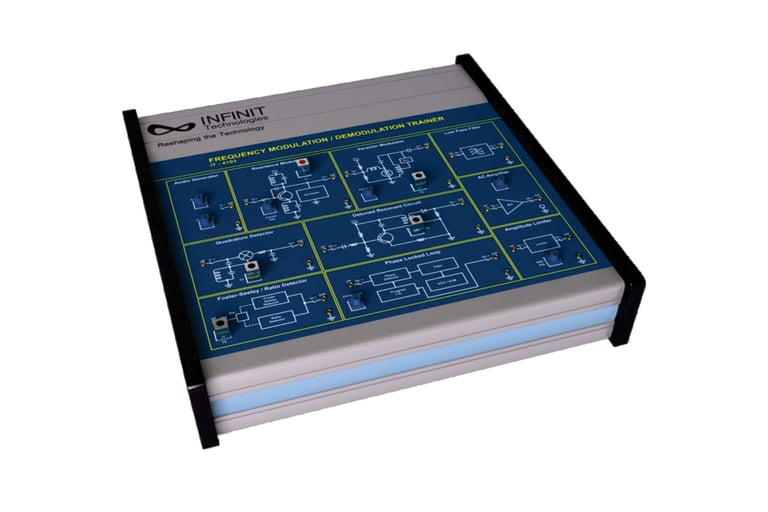

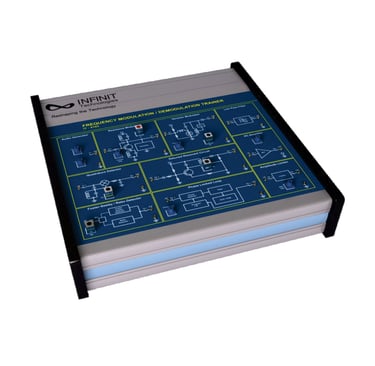

IT-4103 is designed to Analyze the Techniques of Frequency Modulation & Demodulation using Analog signals. Trainer consists of mainly two types of circuits namely, Modulator & Demodulator. These circuits implement different Modulation & Demodulation techniques.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Each Section Works as an Independent Unit
Audio Generator Included
Amplifier and Low Pass Filter Included
Technical Features:
Audio Generator: Frequency and Amplitude adjustable.
FM Modulator Types:
Reactance Modulator
Varactor Modulator
FM Demodulator Types:
Detuned Resonant
Quadrature Detector
Foster -Seeley
Ratio – Detector
Phase Locked Loop
Low Pass Filter: 3.4 KHz Cut off Frequency
Amplifier: AC Amplifier with adjustable gain
Inter-connections: 2 mm gold plated pins
Accessories: Power cord, Experiment Manual, Set of patch cords
