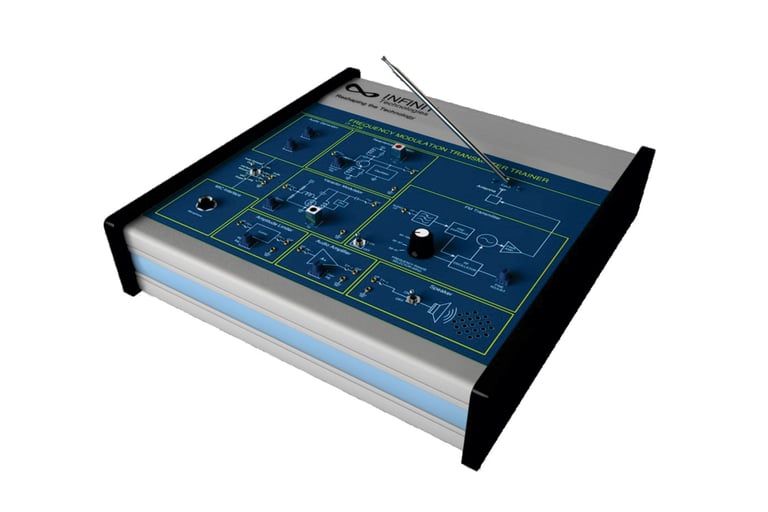

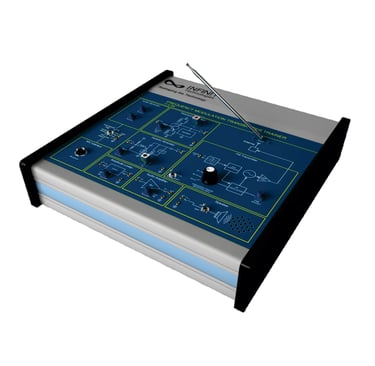

Frequency Modulation Transmitter Trainer
Experiments Included:
Main characteristics of an FM transmission system
Study of Modulator Types, Reactance and Varactor
Study of FM Transmitter Circuit
Category: Telecommunication Technology Products
IT-4108 is designed to analyze the Techniques of Frequency Modulation using Analog signals. Trainer also contains an FM transmitter with power amplifier. Frequency modulators are also included to study the wired Frequency modulation techniques.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Each Section Works as an Independent Unit
Input Devices like microphone, Audio Generator Included
Output Devices like Speaker Included
Technical Features:
Audio Generator: Frequency and Amplitude adjustable.
Micro phone Input: Input through micro phone
FM Modulator Types:
Reactance Modulator
Varactor Modulator
Carrier Frequency: 455 Khz
FM Transmitter: Monolithic Based with ON/OFF Control
Frequency: 99 -105MHz
Power Amplifier: Built In
Antenna: FM Telescopic Type
Transmit Range: 10 feet
Audio Amplifier: Monolithic Type
Speaker: 8 Ohm with ON/OFF Control
Interconnections: 2 mm gold plated pins
Accessories: Power cord, Experiment Manual, Set of 2mm patch cords, Micro Phone
