Inclined Pitot Tube Apparatus
Experiments
Static and dynamic pressure measurement.
Determination of velocity profile in a tube flow.
Specification
Tube for measuring pressure in a fluid flow

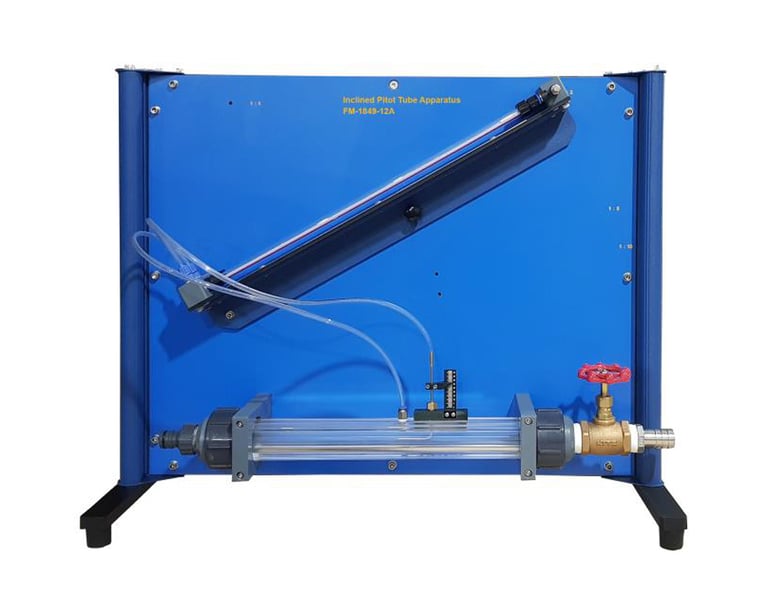

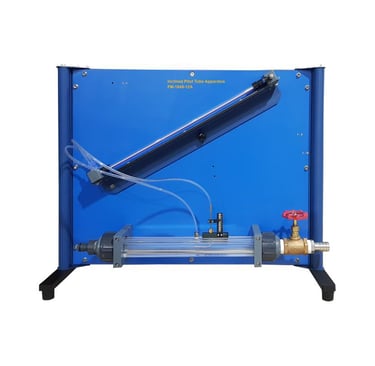

Pitot static tube complete with scale for positioning within the tube
The pipe section is made of transparent acrylic
Manometer
Hose coupling
Compatible with hydraulic bench
Technical Data
Effective length: 26mm
Bend radius: 5mm
Small limb: 47mm
Manometer:
Adjustable Ratio: 1:1, 1:2, 1:5, 1:10
Measuring Range: 400mm
Scope of Delivery
1 experimental unit
1 instruction manual
1 set of hose connection
Required for Operation
Hydraulic bench (closed water circuit) or laboratory water
connection
Category: Fluid Mechanics Products
The Inclined Pitot tube, also known as a pressure measuring tube, enables the total pressure in a fluid flow to be measured. The unit consists of a small tube that is positioned in the flow such that the opening is facing the flow. By positioning the tube in the flow field, the direction and magnitude of the velocity can be determined.
The Inclined Pitot tube is connected to a manometer; the pressure measured can be read directly on the manometer.
