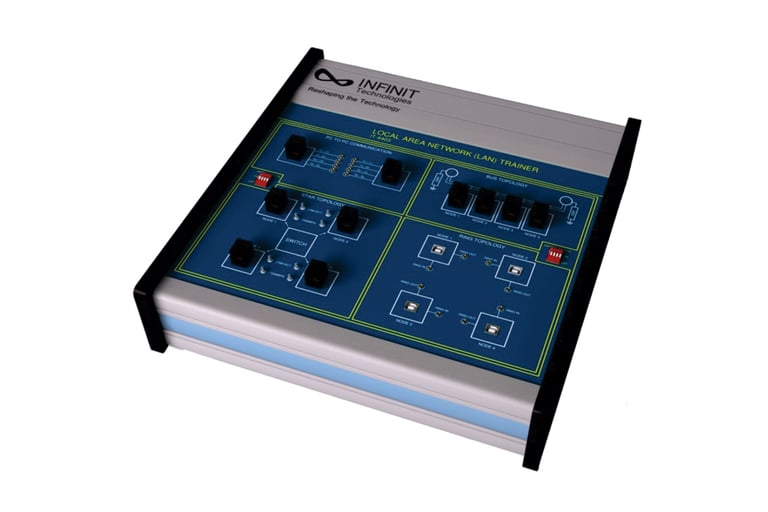

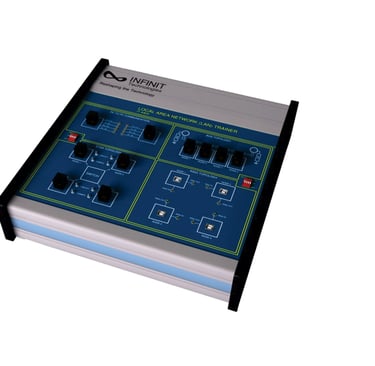

Local Area Network (LAN) Trainer
Understanding Ping Command
Implementation of PC to PC Communication
Implementation of BUS Topology using 10BASE2
Implementation of Token Ring Topology
Implementation of Star Topology using 100BASETX
Implementation of CSMA/CD (Carrier Sense Multiple Access with Collision Detection
Category: Telecommunication Technology Products
IT-4403 is a comprehensive training system provides the understanding of all the fundamentals of networking. Experiments are designed to understand the user about the knowledge regarding the network layers. The user can understand and actually implement various topologies. The user will understand the protocols, topologies used in networking. The software provided with the trainer is used to perform all the experiments and it will assist the user to observe the various effects and configurations on network along with the graphical representation.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Each Section Works as an Independent Unit
Built-in USB UART Convertor
Built-In 10/100 Switch
Each Section Clearly Marked for Easy Understanding
Technical Features:
Hardware:
PC to PC using RJ-45
Star topology using RJ-45 Connector
Bus topology using RJ-45 Connector
Ring topology using USB-UART
Data transmission speed: 10/100 Mbps
Nodes: 4
Software:
Star, Bus & Ring selection
Protocols:
CSMA/CD, CSMA/CA, Stop N Wait, Go back to N, Selective repeat, Sliding Window, Token Bus, Token Ring
Packet Size:
128, 256, 512, 1024, 2048, 4096, 8192, 16384
Inter Packet Delay:
1000 – 5000 ms
Error Generation:
Acknowledgment lost, bad packet, auto error generation, Data encryption & decryption
Graphical Representation:
Data on software screen with packet details
Network Details:
Computer name, IP address, Port number, Network Status, MAC address and OS on computer.
Network & Protocol Analysis:
Packet serial number, file name, file size, file number, receiver name, Workgroup, receiver IP address , total packets, packet length, time out, protocol, topology, receiver, MAC address, port number, file send start time, file sent completion time, transmission time data rate (Mbps), error.
