Microprocessor Trainer (8086) with Applications
Experiments Included:
Controlling the Processor I/O Ports
Programmable Peripheral Interface (PPI)
Address Decoding of an I/O Device
Study of UART 0/1 Device
Controlling Character LCD
Controlling Graphical LCD
Controlling Keypad and Joystick
Direction Control of DC Motor
Direction Control of Stepper Motor
To Control Direction of R/C Servo Motor
Control of 8-Bit A/D Converter
Control of 8-Bit D/A Converter
To Study Working of Dot Matrix LED Display
Software Features:
Directory Display
File Management
Upload executable Programs
Execute the Programs
Software Reset

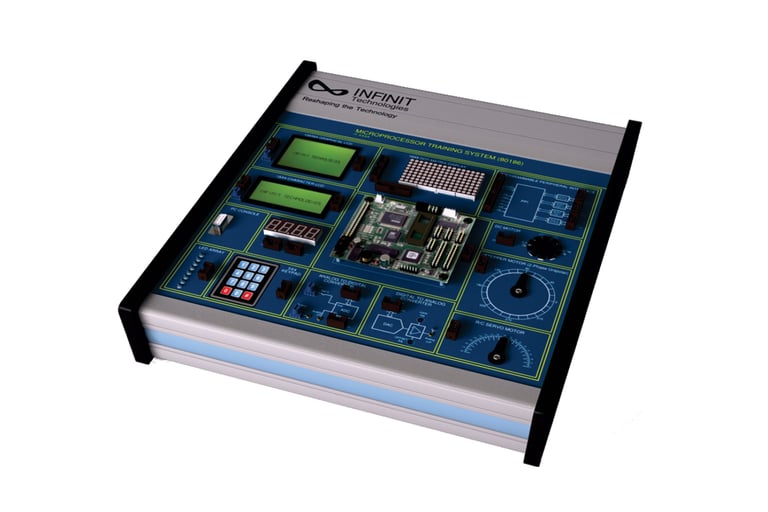

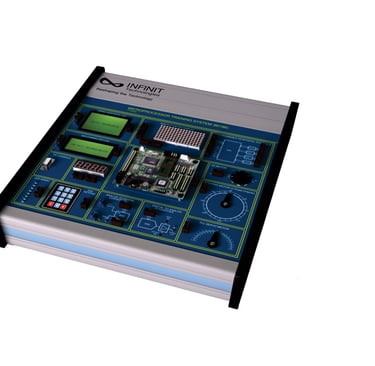

The IT-4320 8/16-Bit Microprocessor Training System is based on the Intel 8086 microcomputer and is software compatible to Intel 8086/80186 family of processors. The 8086 is a high performance microprocessor that gave rise to x86 architecture. DOS compatibility allows development in a familiar environment with a wide range of tools.
The application can then be tested through the console serial port. Borland C compiler IDE enables environment for east development of programs/applications. PC software is provided with the training system to upload programs and to execute the programs on the training system.
Technical Features:
Motherboard:
33Mhz Intel 8086/80186 Compatible Processor
XDOS (PC DOS 3.3 Compatible)
415K Flash
64 Digital I/O lines
2xRS-232 Ports with USB-UART interface
Software for program uploading / execution
Watchdog Timer
3×16 Bit Timer Channels
Selected PC BIOS Functions
Full Address/Data Expansion Bus
PC Console
Software:
Borland C/C++ 4.5 or later Compiler
Sample Code
.net based control program
External I/O Interface Board:
8-Bit A/D Converter
8-Bit D/A Converter
128×64 Graphical LCD
16×4 Character LCD
Four 7-Segment Displays
8-Bit Monitor LEDs
DC Motor with optical encoder, direction control & PWM control
Stepper motor with drive circuit
R/C Servo motor with drive circuit
Programmable Peripheral Interface 82C55
4×4 Matrix Keypad with 5-way joystick
16×8 Dot Matrix LED Display
Accessories: Power Cord, 2mm Patch Cords, IDC Connector Cables, Software CD, USB interface cable
Category: Embedded Technology Products
