Microstrip Trainer
Experiments Included:
Introduction to the microwave VCO source and detector and action of 3-port circular
Measurement of insertion loss of Low Pass Filter
Measurement of insertion loss of Band Pass Filter
Properties of Directional Coupler
Measurement of Return Loss, Reflection Coefficient and VSWR
Determination of an unknown resistive load
Measurement of Effective Dielectric Constant using Ring Resonator
Properties of Power Divider and Rat-Race Coupler
Quadrature Hybrid Coupler Investigation
DC biasing circuits and MMIC amplifier
Microwave radio link and patch antenna
Category: Telecommunication Technology Products

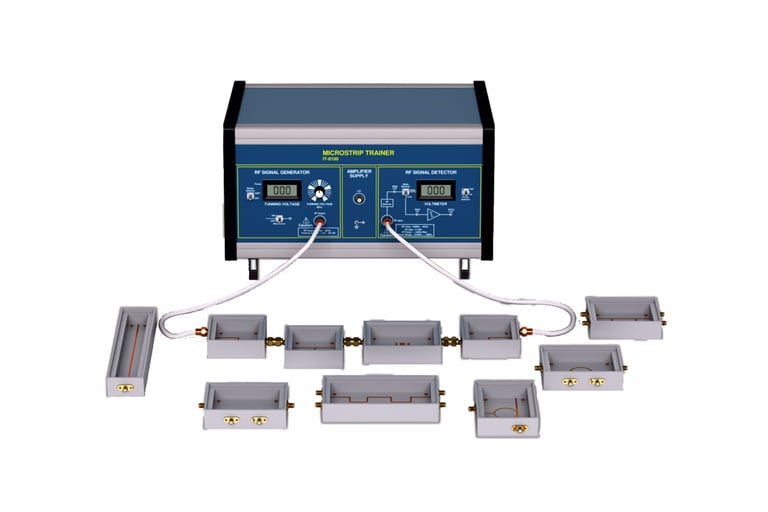

This trainer uses high precision components to allow students to investigate Microstrip Technology principles. The Complete Microstrip Communication Trainer IT-8100 needs no special test equipment. It is designed to use with the digital voltmeter and DC Power supply. A comprehensive manual provides user with detailed background material, theory and structured assignments, whilst avoiding unnecessary mathematical analysis.
Features:
Industrial Grade VCO source
Modular Structure
Complete theoretical background
Stable RF Detector
Technical Features:
Main Unit:
S-Band Transceiver:
Voltage Controlled Oscillator: 2~4 GHz
Output Power: 9dBm
Tuning Voltage: 1.25~22V DC
Power Output Flatness: ±2dBm
RF Signal Detector:
Frequency Range: 50MHz~4GHz
Input Power: -5dBm~-45dBm
Modulation: 1KHz ASK
2x Digital Voltmeter
Microstrip Components:
S-Band MMIC Amplifier
DC Biasing Unit
Patch Antenna
3-Port Circulator
Low Pass Filter
Band Pass Filter
Matched Load
Directional Coupler
Hybrid Coupler
Rat Race Coupler
Ring Resonator
Wilkinson Power Divider
T-Divider
Accessories: Termination(Short), Termination (50Ohm), SMA Male-Male Cables, SMA Male- Male Connectors, Experiment Manual, 2mm Patch Cords and Power Cord
