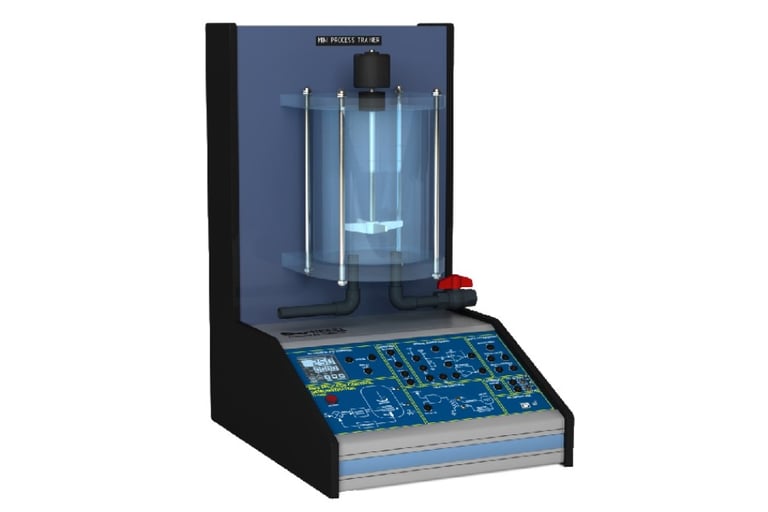

Mini Process Demonstrator
Specs:
Temperature Range : from room temperature to 100°C
Temperature Indicator : 0 to 850°C
Control Valve : Manually Operated
Stirrer : 0 or 5 V DC
Level Sensor : 0 or 5 V DC
Indicators : Level Indicators
Stirrer Indicator
Heater Indicator
Relay Action : Forward for Cooling and Reverse for Heating
PID Controller : Hardware based & Computer based
ON/OFF Controller : Hardware based & Computer based
Computer Interface : USB
Analog Input : One (0 to 5 V DC)
Digital Input : Two (TTL)
Digital Output : Two (TTL)
Switches : Two (TTL)
Signal Conditioning : Amplifiers with gain of 1 and 10
PC Based Temperature Indicator : 0 to 100ºC
Power Supply : 230V ± 10%, 50 Hz (others on request)
In this Technological world, instrumentation & control engineering is used in almost every industrial process and generating system, where consistent and reliable operation are required. Mini Process Control Demonstrator Nvis 3002 explains students and professionals the concepts and working of Thermal Process Control which enables them to learn advance and more complex thermal process; and contribute in the growth of instrumentation arena. Instrumentation provided the means of monitoring recording and controlling a process to maintain it at a desired state. It formulates students to accumulate, develop and practice the fundamentals of thermal process control. Mini Process Control Demonstrator Nvis 3002 has Temperature Sensor, Level Sensor, Level Indicators, Additionally it has safety measures too such as emergency shutdown and overheat protector. There is a wide range of experiments that can be performed on the Platform. It also has facility of computer interfacing with real-time graphical analysis which helps to perform mathematical calculations required to state stability of process using methods of control system. Control system is a broad concept and the following might apply to on automated system such as a Robot or to a process control system such as a temperature controlling of chemical/water in a boiler.
