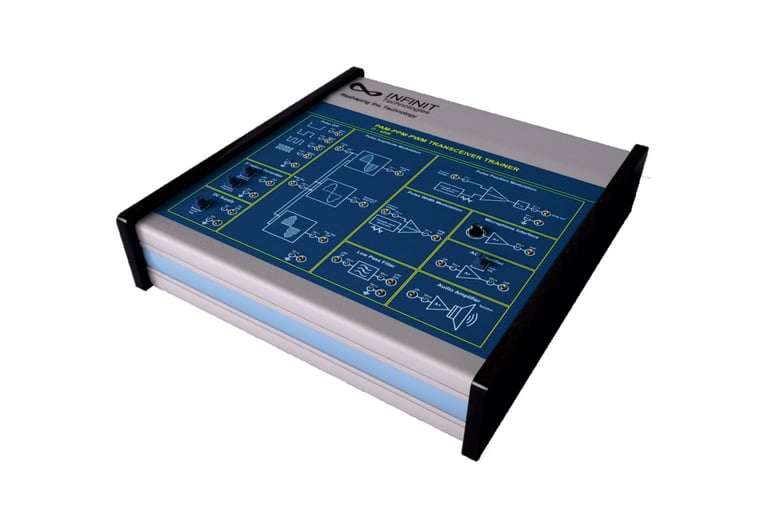

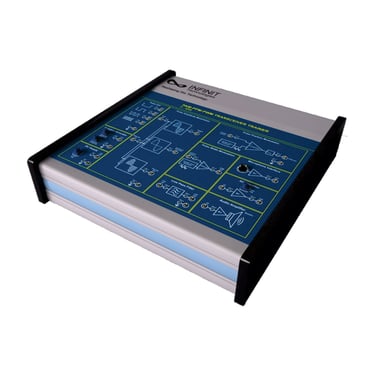

PAM PPM PWM Transceiver Trainer
Experiments Included:
Study Pulse Amplitude Modulation using Natural & Flat Top
Study PAM using Sample
Study PAM using Sample & Hold
Study PAM De-modulation with Sample, Sample & Hold and Flat Top
Study PPM Using DC Input
Study PPM Using Sine Wave Input
Study PPM De-modulation
Study PWM using DC input
Study Voice Link Using PAM
Study Voice Link Using PPM
Study Voice Link Using Pulse Width Modulation
Category: Telecommunication Technology Products
This training system is designed for students to better understand the pulse modulation techniques. All modulation techniques use different circuits & steps to modulate the analog signed & retrieve original signal.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Each Section Works as an Independent Unit
Built-In Clock Generators
Built-In Sine Generators
Built-in Data Generator
Built-In AC Amplifier
Each Section Clearly Marked for Easy Understanding
Technical Features:
Clock frequencies: 8KHz, 16KHz, 32KHz, 64KHz
Sine wave generator: Adjustable frequency and amplitude
Low pass filter: 5th order Butterworth filter
AC Amplifier: Adjustable gain
Audio Amplifier: Monolithic Amplifier with Speaker
Modulation Techniques Used:
PAM (Pulse Amplitude Modulation)
PPM (Pulse Position Modulation)
PWM (Pulse Width Modulation)
