PIC Microcontroller Training System
Experiments Included:
Trainer Introduction
Device Introduction for PIC
Device Programming using Universal Programmer
Dot Matrix Display
2-Dimensional Key-pad with Joystick
External interrupt and Timers
A/D and D/A converters
Computer Interfacing
I2C EEPROM
Experiments with Optional Add-on Cards:
Programmable Peripheral Interface (82C55)
4x 7-Segment
16×4 Character LCD
128×64 Graphical LCD
8-CH Relay Output
DC Motor
R/C Servo
Stepper Motor with Direction Control
Strain Gauge & Temperature
Audio Unit
Ultrasonic
Traffic Light
Category: Embedded Technology Products

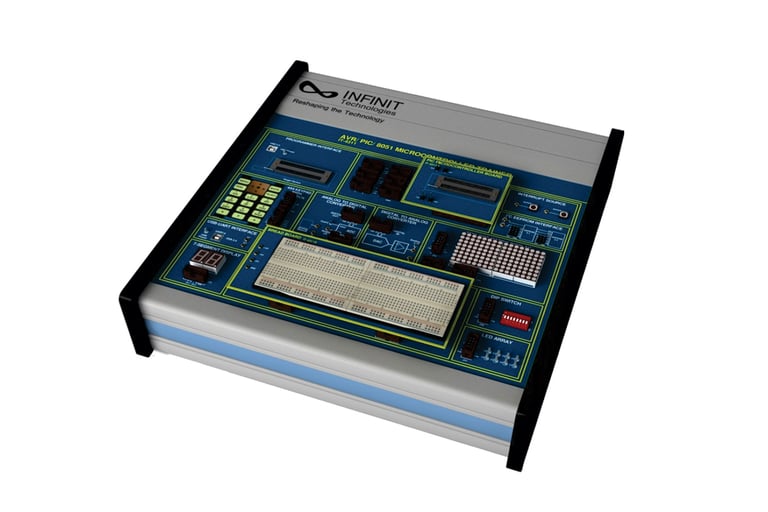

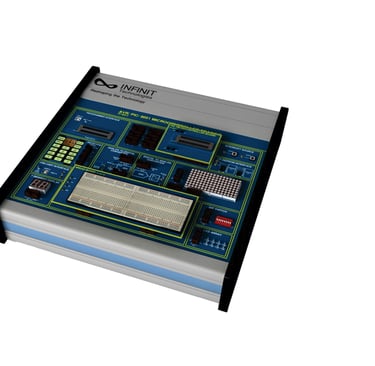

IT-4311C is a basic Microcontroller Training System. This system contains on board devices like A/D converter, D/A converter, Dot Matrix Displays, Matrix keypad, 7-Segment, DIP switches and LEDs for monitoring and 840 tie point bread board for custom applications. Trainer contains the device programmer and device mounting option. This enables students to perform experiments on major microcontroller platforms namely PIC.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Peripherals Included
Peripheral can be used Independently
Built-in Protection Circuit
Each Section Clearly Marked for Easy Understanding
Technical Features:
8-Bit A/D & D/A Converter
Two 7-Segment Displays
8-Bit DIP Switches
8X Monitor LEDs
16×8 Dot Matrix Display
2x I2C EEPROM Interface
4×4 Matrix Keypad with 5-way Joystick
2x Interrupt Source
Serial Port Interface with USB-UART converter
USB Programmer for PIC Devices
Breadboard with 840 Tie Points
Accessories: Power Cord, 2mm Patch Cords, 10-pin IDC Cable, Software CD, Experiment Manual, Bread Board Module (IT-4331)
Optional Add-On Modules:
IT-4334 Programmable Peripheral Interface (82C55)
IT-4335 4x 7-Segment
IT-4337 16×4 Character LCD
IT-4338 128×64 Graphical LCD
IT-4339 8-CH Relay Output
IT-4340 DC Motor with Optical Encoder
IT-4341 R/C Servo with Driver
IT-4342 Stepper Motor with Direction Control
IT-4343 Strain Gauge & Temperature Module
IT-4344 Audio Unit Module
IT-4345 Ultrasonic Module
IT-4346 Traffic Light Module
