PID Trainer with Applications
Experiments Included:
Study of the Rotational Sensor
Study of the Temperature Sensor
Study of the Photo Sensor
ON-OFF P PI PD and PID Closed Loop Control of the Temperature
P PI PD and PID Closed Loop Control of the Rotational Sensor
ON-OFF P PI PD and PID Closed Loop Control of the Photo Sensor

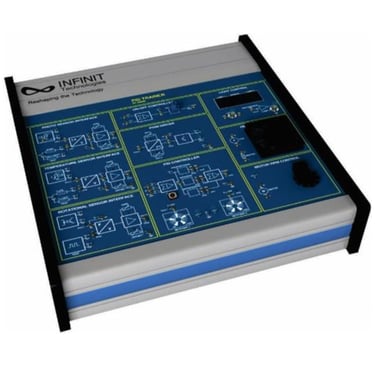

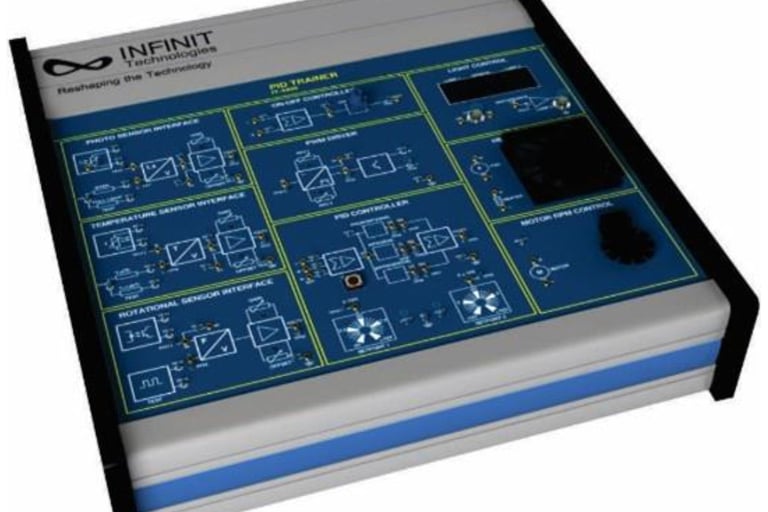

PID Trainer with Applications is an educational board containing the interface circuits for the sensors and the actuators and the ON/OFF proportional integral and derivative control circuits (PID)
Category: Automation and Control Technology
