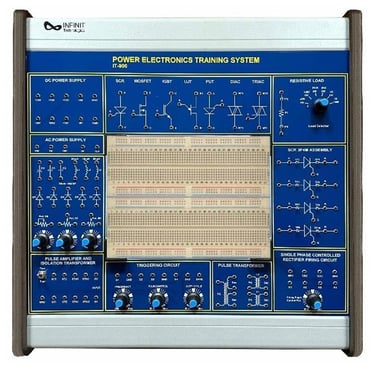

Power Electronics Training System
Experiments:
Study of the V-I Characteristics of SCR
Study of the V-I Characteristics of UJT
Study of the V-I Characteristics of MOSFET
Study of the V-I Characteristics of IGBT
Study of the V-I Characteristics of DIAC
Study of the V-I Characteristics of TRIAC
Study of the V-I Characteristics of PUT
Study of RC (Full Wave) Triggering Circuit
Study of the SCR Triggered by UJT Study of the SCR Triggered by 555 IC
Study of the SCR Triggered by Op-Amp 741 IC
Study of the Ramp and Pedestal Triggering Circuit with Anti-Parallel SCR in AC Load
Study of the UJT Relaxation Oscillator
Study of the Voltage Commutated Chopper
Study of the Class B Commutation Circuit
Study of the Class C Commutation Circuit
Study of the Class D Commutation Circuit
Study of the Class F Commutation Circuit
Study of R Triggering Circuit
Study of RC (Half Wave) Triggering Circuit
Study of the Bedford Inverter
Study of the Single Phase PWM Inverter using MOSFET and IGBT
Study of the Half Wave Controlled Rectifier with R and RL Load
Study of the Full Wave Controlled Mid-Point with R and RL Load
Study of the Full Controlled Bridge Rectifier with R and RL Load
Power Electronics Training System is used to perform all the power electronics circuit experiments. It is very useful in power electronics laboratory for performing power experiments in technical colleges and universities. This trainer familiarizes student with characteristics of power electronics devices and the applications of power devices. The applications of power devices are in alarm circuit, lamp flasher, rectifiers, choppers, inverters.
Power Electronics Training System Contains Following Blocks:
DC supply, AC supply, Triggering circuit, Pulse amplifier and Isolation transformer, Pulse transformer section, Single phase controlled rectifier firing circuit, SCR assembly, Load section, Power component section.
