Pressure Control Trainer
Experiments:
Study of the Pressure Sensor
Study of the Characteristics of the Pump and of the Solenoid Valve
Study of the characteristics of the static process and of the time constants
ON-OFF P PI PD and PID Closed Loop Control of the Pressure

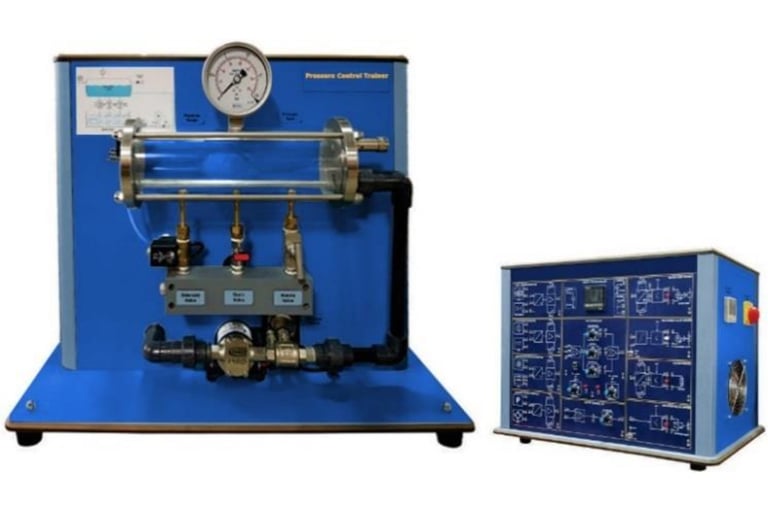

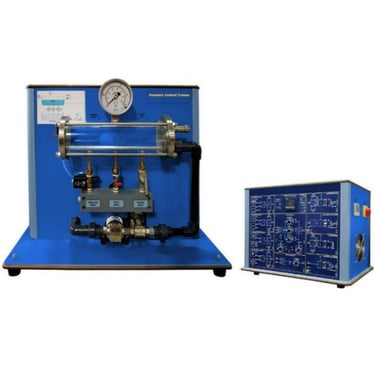

Pressure Control Trainer contains an educational board with a pressurized vessel and a set of sensors and actuators for pressure A control module containing the interface circuits for the sensors and the actuators and the ON/OFF proportional integral and derivative control circuits (PID)
Category: Automation and Control Technology
