Pressure Transducer Trainer
Experiments:
Basic Control Systems Equipment and Terms Used
Study the difference between open loop b and closed loop systems
Expression for the overall gain of a negative feedback closed loop system
Calculation of overall gain of negative feedback closed loop system from given information
Basic components of a closed loop system and explain their functions
Meaning of terms associated with control system equipment
Environmental Measurements
Construction and characteristics of an air flow transducer
Construction and characteristics of a pressure transducer
Sound Output
Construction and characteristics of a moving coil Speaker Construction and characteristics of a buzzer Automation & Control Technology
Linear or Rotational Motion
Construction and characteristics of a DC solenoidSignal Conditioning Amplifier
Characteristics and application of DC amplifiers
The term “Offset” and the need for offset control
Characteristics and application of an AC amplifier
Control Systems Characteristics
Characteristics of an ON/OFF system
Characteristics of a Proportional system
Characteristics of an Integral system
Characteristics of a Derivative system
Practical system 3-term (or PID) controller
Practical Control Systems
Characteristics of an ON/OFF pressure control system

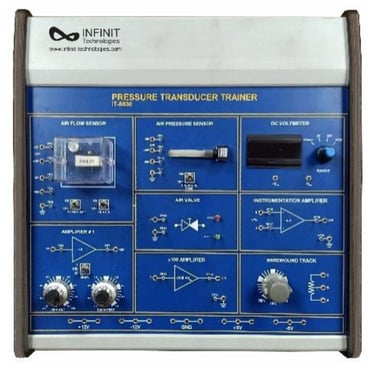

IT-5930 Trainer introduces students to Pressure transducer, signal conditioning circuits and display devices through a wide range of practical activities. The study module includes transducers and instrumentation trainer and a curriculum manual.
Category: Automation and Control Technology
