Process Control Trainer (4 in 1)
Experiments:
Study of the Level Sensor
Study of the Flow Sensor
Study of the Pressure Sensor
Study of the Temperature Sensor
Study of the Characteristics of the Pump and of the Motorized Valve
Study of the characteristics of the static process and of the time constants
ON-OFF, P, PI, PD and PID Closed Loop Control of the Level
P, PI, PD and PID Closed Loop Control of the Flow
ON-OFF, P, PI, PD and PID Closed Loop Control of the Temperature
ON-OFF Control of the Level with the Pressure Sensor

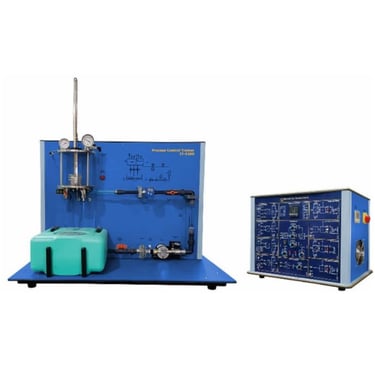

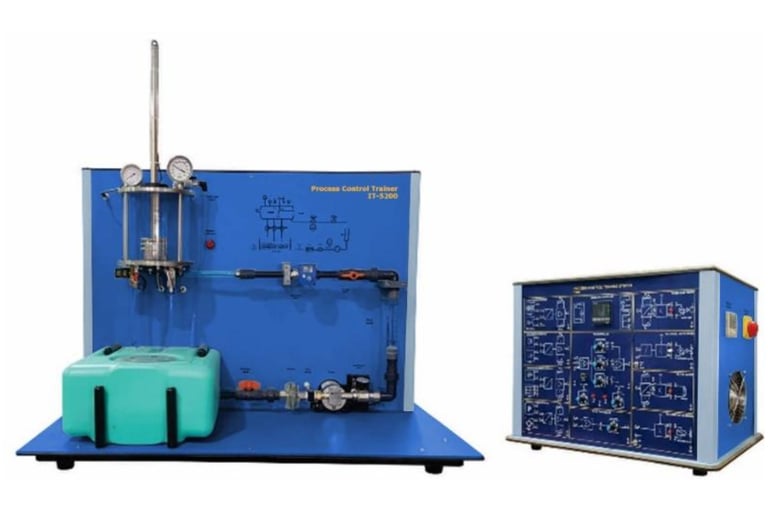

Process Control Trainer contains an educational board with a pressurized vessel and a set of sensors and actuators for level pressure temperature and flow A control module containing the interface circuits for the sensors and the actuators and the ON/OFF proportional integral and derivative control circuits (PID)
