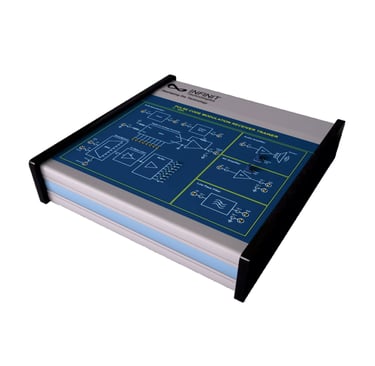

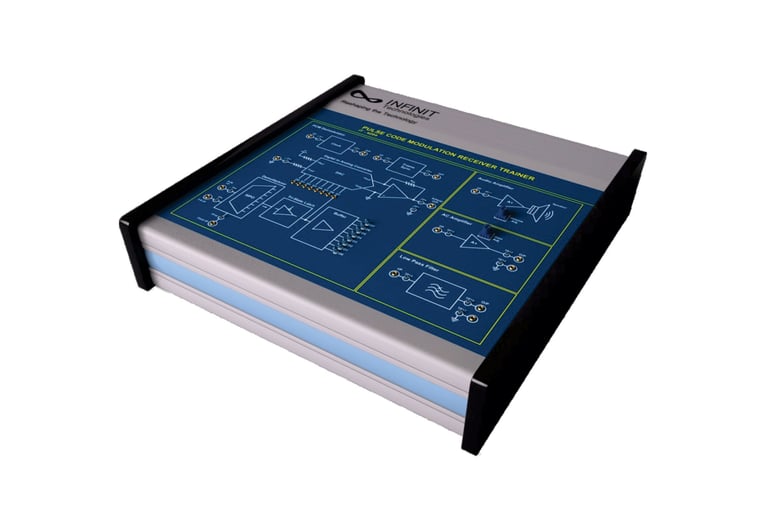

Pulse Code Modulation Receiver Trainer
Experiments Included:
Pulse Code De-Modulation Familiarization
Pulse Code De-Modulation
Pulse Code De-Modulation through voice link
Category: Telecommunication Technology Products
This trainer is counter part of PCM Transmitter. It explores the concepts relating to PCM reception like D/A conversion, Serial to Parallel Conversion, Synchronization etc. PC-PC interface using USB UART converter.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Each Section Works as an Independent Unit
Built-in Audio Amplifier and Speaker
Each Section Clearly Marked for Easy Understanding
Technical Features:
Clock: 64KHz
Frame Sync.: 8KHz
D/A Converter: 8-Bit Monolithic
PCM Input: Serial Input
De-Modulator: Pulse Coded Decoder
PC interface: USB-UART interface
Low Pass Filter: 5th order Butterworth with cut off frequency 3.4KHz
AC Amplifier
Audio Amplifier with Speaker
Interconnections: 2 mm gold plated pins
Accessories: Experiment Manual, 2mm patch cords, USB cable & power cord
