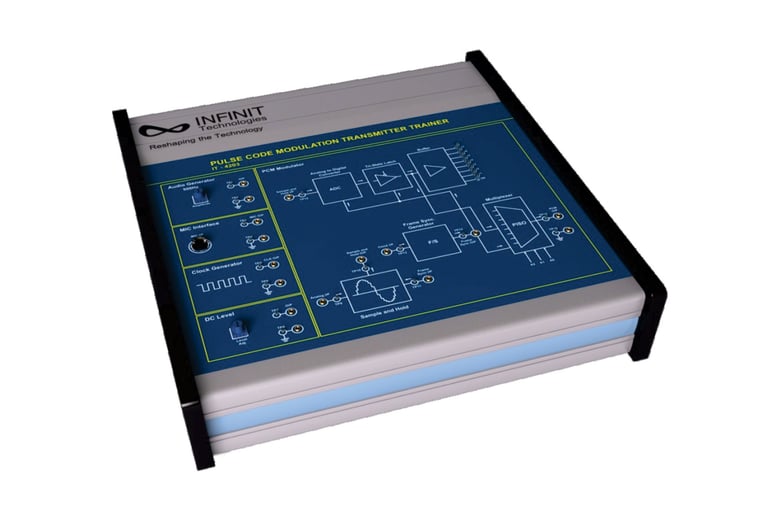

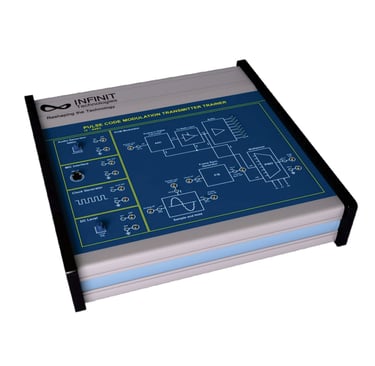

Pulse Code Modulation Transmitter Trainer
Experiments Included:
Pulse Code Modulation Familiarization
Pulse Code Modulation
Pulse Code Modulation through voice link
Category: Telecommunication Technology Products
PCM is standard technique used to convert an Audio signal and high speed Analog signals into digital stream. This trainer explores the concepts relating to PCM transmission like Clock, Frame Sync, A/D conversion, Parallel to serial Conversion etc. PC- PC interface using USB UART converter.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Each Section Works as an Independent Unit
Built-in Audio Generator and microphone interface
Built-In Clock Generator
Each Section Clearly Marked for Easy Understanding
Technical Features:
Clock Frequency: 64KHz
Frame Sync: 8KHz
A/D Converter: 8-Bit Monolithic
Multiplexer: 8-Bit Parallel In Serial Out
Audio Source: 500Hz Audio Generator, Microphone
Modulation Type: Pulse Coded
PC interface: USB-UART interface
Interconnections: 2 mm gold plated pins
Accessories: Experiment Manual, 2mm patch cords and power cord, USB Cable , Software CD
