QPSK Modulation DeModulation Trainer
Experiments Included:
Data Splitter
Quadrature Carrier Generator
I-Q Modulator & QPSK Modulator
Product Detector for I-Modulator & Q-Modulator
Data Combiner for I-Q Data
Category: Telecommunication Technology Products

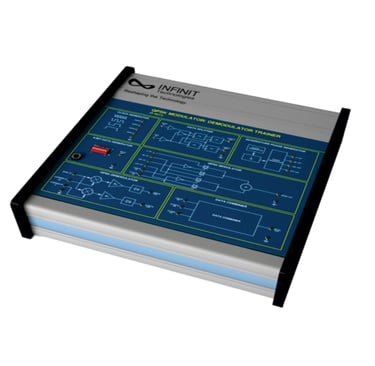

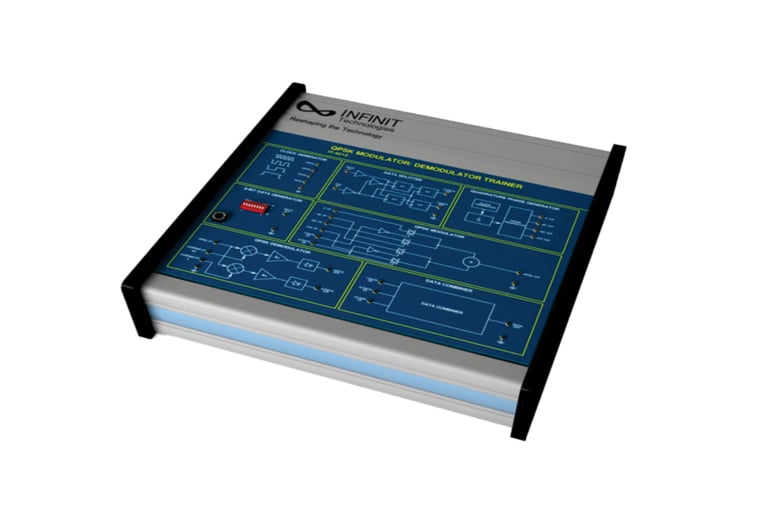

This trainer explores into the concept of QPSK Modulation and De-modulation. All the necessary components like TTL data generator, clock generators, Quadrature carrier generators etc are provided on board.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Each Section Works as an Independent Unit
Built-In Clock Generator
Built-In Data Generator
Quadrature Carrier Generator
Technical Features:
Clock Frequency: 8KHz, 16KHz, 32KHz, 64KHz
Data Generator: 8-bit TTL
Modulator: Quadrature Phase Shift Keying
Demodulator: Product Detector
Data Splitter & Combiner
Interconnections: 2 mm gold plated pins
Accessories: Power cord, Experiment Manual and 2mm patch cords
