RF Trainer
Experiments Included:
Introduction to the 240MHz VCO source and detector
Measurement of Insertion Loss
Behaviour of High Pass Filter
Behaviour of Microstrip Bandpass and Bandstop Filter
Properties of Tee Divider
RF & IF Amplifier Investigation
Introduction to Mixers
Category: Telecommunication Technology Products

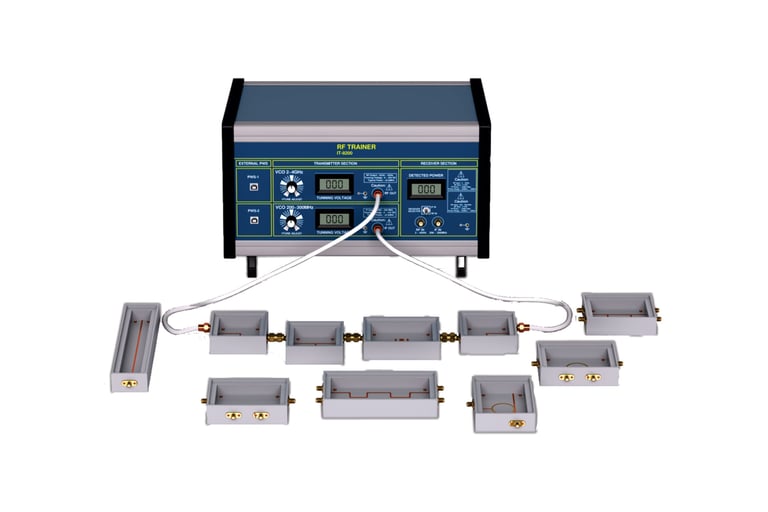

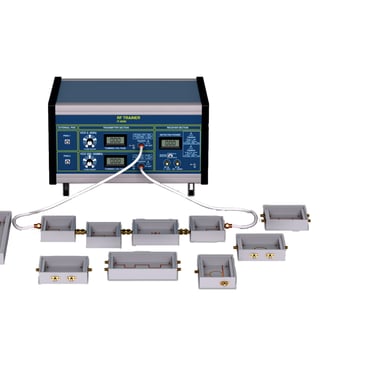

Radio Frequency Trainer IT-8200 has been designed to act as basic tool for performing experiments in the field of RF & Microwave Engineering. This system is specially developed to provide an innovative approach to microwave circuits and systems. The trainer comprises the fundamental passive and active monolithic microwave integrated circuit (MMIC) building blocks, used in modern microwave radio, radar and satellite communication systems.
Features:
Industrial Grade Equipment
Stable Source
Modular Structure
Complete Theoretical Information
Technical Features:
Main Unit:
VCO 2~4 GHz (Tunable)
VCO 200~300 MHz (Tunable)
RF Detector 2~4 GHz
IF Detector 200~300MHZ
DC Supply Variable for each VCO
3x DC Voltmeter
DC Supply for RF/IF Amplifier
DC Supply Up/Down Converter
RF Components:
2-4 GHz VCO
200-300MHz VCO
200-4000MHz Detector
Butterworth LPF 2.4GHz
Chebyshev LPF 2.4GHz
High Pass Filter 2.4GHz
Hairpin Filter 2.4GHz
Bandstop Filter 2.4GHz
RF Amplifier 2.4GHz
T-Divider 2.4GHz
Down Converter
Up Converter
Low Pass Filter 240MHz
High Pass Filter 240MHz
Band Pass Filter 240MHz
Band Stop Filter 240MHz
IF Amplifier 240MHz
Accessories: Termination(Short), Termination (50Ohm), SMA Male-Male Cables, SMA Male-Male Connectors, Experiment Manual, 2mm Patch Cords, USB Cable and Power Cord
