Rotational Sensor Transducer Trainer
Experiments:
Basic Control Systems Equipment and Terms Used
Study the difference between open loop and closed loop systems
Expression for the overall gain of a negative feedback closed loop system
Calculation of overall gain of negative feedback closed loop system from given information
Basic components of a closed loop system and explain their functions
Meaning of terms associated with control system equipment
Signal Conditioning Amplifier
Characteristics and application of DC amplifiers The term “Offset” and the need for offset control Characteristics and application of an AC amplifierPractical Control Systems
Characteristics of a Light Controlled ON/OFF SystemCharacteristics & Construction
Discuss the characteristics of a filament lamp Describe the construction and characteristics of a photovoltaic cell Describe the construction and characteristics of a phototransistor Describe the construction and characteristics of a photoconductive cell Describe the construction and characteristics of a PIN photodiode

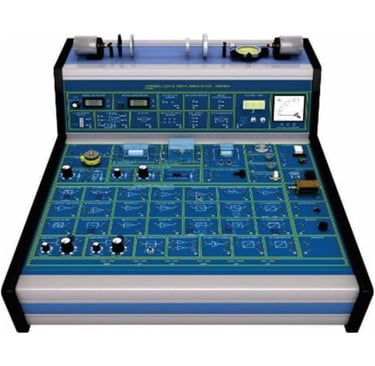

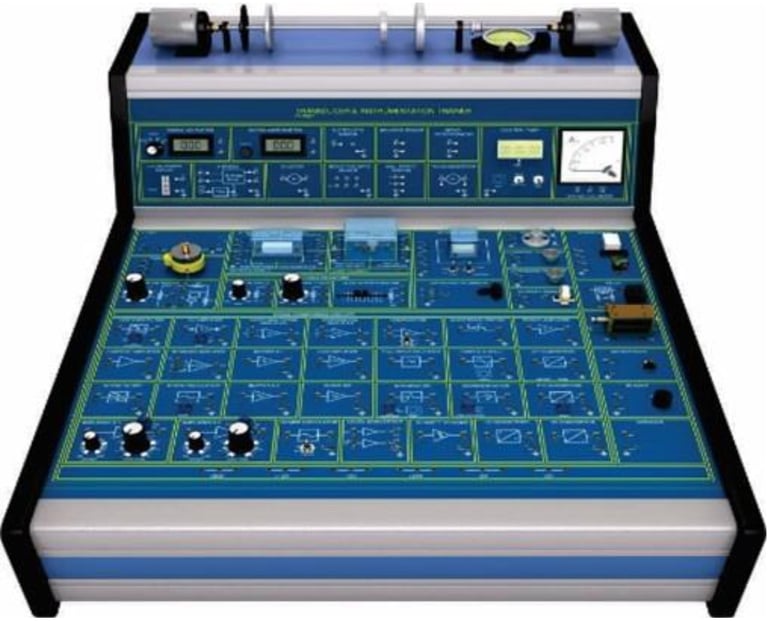

IT-5932 Trainer introduces students to Optical transducer like Photovoltaic cell photo transistor etc signal conditioning circuits and display devices through a wide range of practical activities The study module includes transducers and instrumentation trainer and a curriculum manual
Category: Automation and Control Technology
