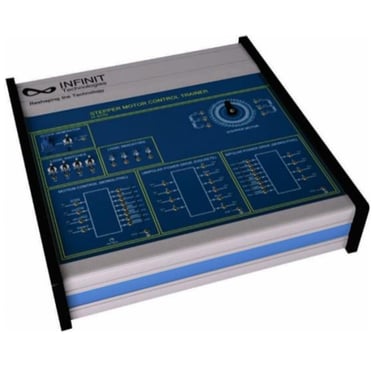

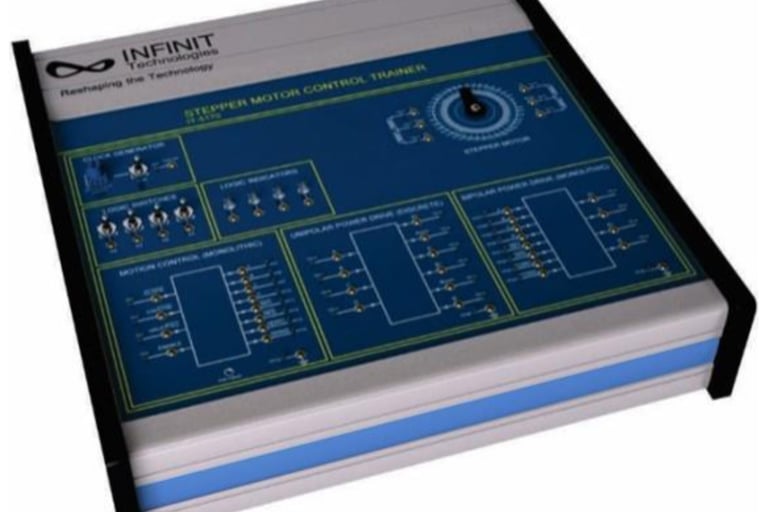

Stepper Motor Control Trainer
Experiments:
Study of Motion Control using Logic indicators
Study of Stepper Motor in Unipolar Mode and Half Step Operation
Study of Stepper Motor in Unipolar Mode Full Step Operation
Study of Stepper Motor in Bipolar Mode
Study of Stepper Motor in Bipolar Mode without Current Sense
Stepper motors are one of the most versatile forms of positioning systems They are digitally controlled as part of an open loop system and are simpler and more rugged than closed loop servo systems Industrial applications are in high speed pick and place equipment and multi-axis machine CNC machines often directly driving lead screws or ball screws They are frequently used in precision positioning equipment such as linear actuators linear stages rotation stages mirror mounts packaging machinery and positioning of valve pilot stages for fluid control systems Commercially stepper motors are used in floppy disk drives flatbed scanners computer printers plotters slot machines and many more devices
