Strain Gauge Transducer Trainer
Experiments:
Basic Control Systems Equipment and Terms Used
Study the difference between open loop and closed loop systems
Expression for the overall gain of a negative feedback closed loop system
Calculation of overall gain of a negative feedback closed loop system from given information
Basic components of a closed loop system and explain their functions
Meaning of terms associated with control system equipment
Linear Position or Force Applications
Construction and Characteristics of a Strain Gauge
Signal Conditioning Amplifier
Characteristics and application of DC amplifiers
The term “Offset” and the need for offset control
Characteristics and application of an AC amplifier
Practical Control Systems
Construction of a Weight Pan using Strain Gauge

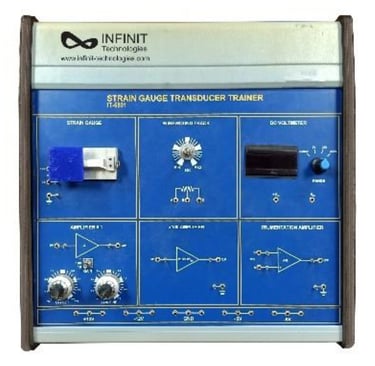

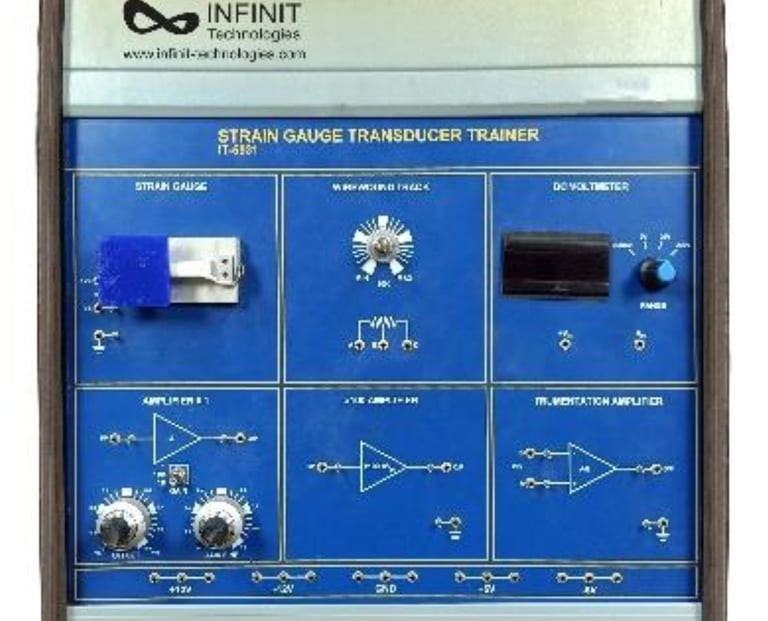

IIT-5931 Trainer introduces students to Strain Gauge transducer, signal conditioning circuits and display devices through a wide range of practical activities. The study module includes transducers and instrumentation trainer and a curriculum manual.
