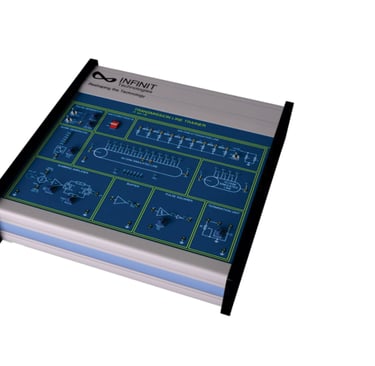

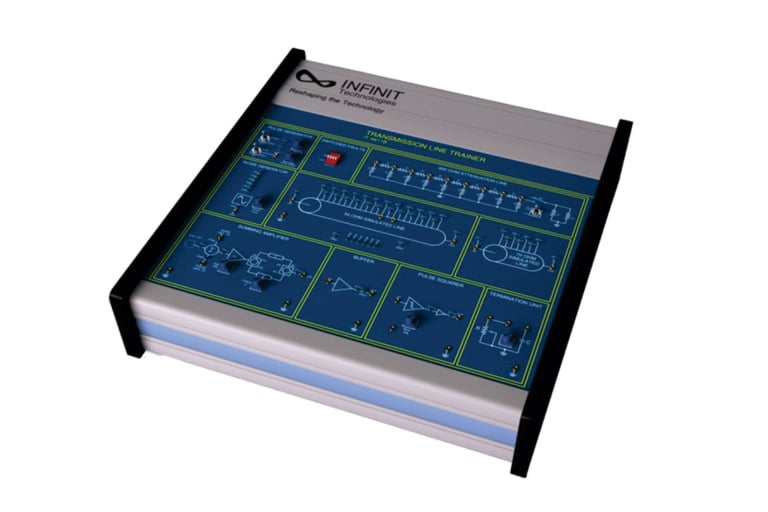

Transmission Line Simulation Trainer
Experiments Included:
Recognize the function of each block of the Transmission line trainer
Delay using Pulse Input
Resistive Matching using Pulse Input
Observe the effect of a reactive termination.
Effect of Noise in Communication
AC Coupling of Pulse Inputs
Matching and Frequency Response
Examine Standing Waves by plotting on graph paper
Low Pass Filter Effect
The Effect of Transformer Matching on the Oscilloscope Display
Category: Telecommunication Technology Products
In the telecommunication field transmission lines are used to convey the signals from one point to another. With this Trainer board you can teach transmission line principles and concepts with better & faster than ever before. Students quickly and easily develop advance knowledge of transmission lines.
Features:
Pulse Generator: Variable Frequency and Pulse Width
Attenuation Line: 600 Ohm
Simulated Line: 50 Ohm & 70 Ohm
Termination Unit: 100 Ohm variable with reactive element
Noise Generator: Variable Amplitude
Standing Wave Display, Buffer, Switched Faults
Pulse Squarer: Comparator level adjust
BNC connector for external input
Interconnections: 2mm gold plated pins
Accessories: Experiment Manual and Power Cord
