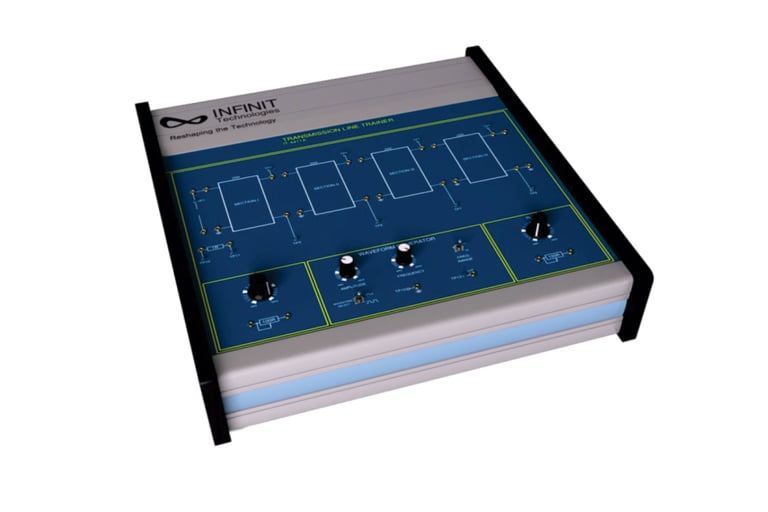

Transmission Line Trainer
Experiments Included:
Measuring the Characteristics of a Line
Measuring the Attenuation of a Line
Measuring the Input Impedance of the Line
Phase Displacement Between the Current & Voltage at Input of Line
Frequency Characteristic of the Line
Study of Stationary Waves
Signal Phase Shift Along the Line
Fault Localization within the Line
Line Under Pulsed Conditions
Category: Telecommunication Technology Products
Transmission Lines are used to convey signals from one point to another. Understanding Transmission Lines in relation to the transmitted signals is very important in telecom. This trainer provides basic concept of coaxial line and includes components to conduct experiments.
Features:
Transmission Line: Four Sections of 25m Each
Co-axial Cable: RG 174
Impedance Matching Resistance: 0-100 Ohm.
Test Generators:
Sine wave: 60 KHz – 4 MHz
Square wave: 60 KHz – 4 MHz
Interconnections: 2mm gold plated pins
Accessories: Power cord, 2mm Patch Cords, Experimental Manual
