Universal Microcontroller Trainer with Applications (AVR/PIC/8051)
Experiments Included:
Trainer Introduction
Device Introduction (8051/AVR/PIC)
Device Programming using Universal Programmer
Seven Segment Displays
2-Dimensional Key-pad
External interrupt and Timers
A/D and D/A converters
Character LCD
Graphical LCD
Computer Interfacing
DC Motor
Stepper Motor
Servo Motor
Programmable Peripheral Interface
I2C EEPROM
Category: Embedded Technology Products

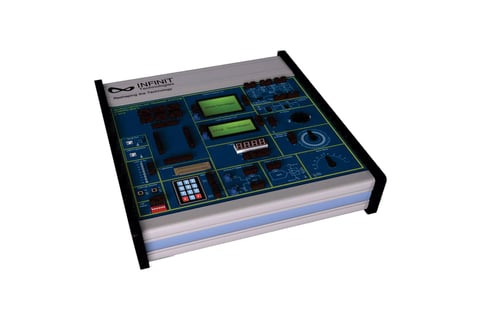

IT-4310 is a universal Microcontroller Training System. This system contains stand alone peripheral devices like Graphical LCD, Keypad, DC Motor, Stepper Motor, etc. Trainer motherboard contains all the peripheral devices, device programmer and device mounting option. This enables students to perform experiments on major microcontroller platforms namely AVR, PIC and 8051.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Peripherals Included
Peripheral can be used Independently
Built-in Protection Circuit
Each Section Clearly Marked for Easy Understanding
Technical Features:
Main Motherboard:
8-Bit A/D Converter
8-Bit D/A Converter
128×64 Graphical LCD
16×4 Character LCD
Four 7-Segment Displays
8x Monitor LEDs
2x I2C EEPROM Interface
DC Motor with optical encoder & direction control
Stepper motor with drive circuit
R/C Servo motor with drive circuit
Programmable Peripheral Interface 82C55
4×4 Matrix Keypad with 5-way Joystick
2x Interrupt Source
8-Bit DIP Switches
Serial Port Interface
USB Programmer for AVR, PIC and 8051 Devices
Interface Connector for Plug-In Board (AVR/PIC/8051)
Plug-In Boards: 8051, AVR & PIC
Accessories: Power Cord, 2mm Patch Cords, 10-pin IDC Cable, Software CD, Experiment Manual
Plug-In Boards:
