Wave Propagation Trainer
Experiments Included:
Study of the Basic set up and Introduction
Study of the Working of Transmitter and Receiver and Determine Wavelength
Study of the Reflection in Microwaves
Study of the Refraction in Microwaves and Snell’s Law
Study of the Polarization in Microwaves
Study of the Double Slit Diffraction and Interference
Category: Telecommunication Technology Products

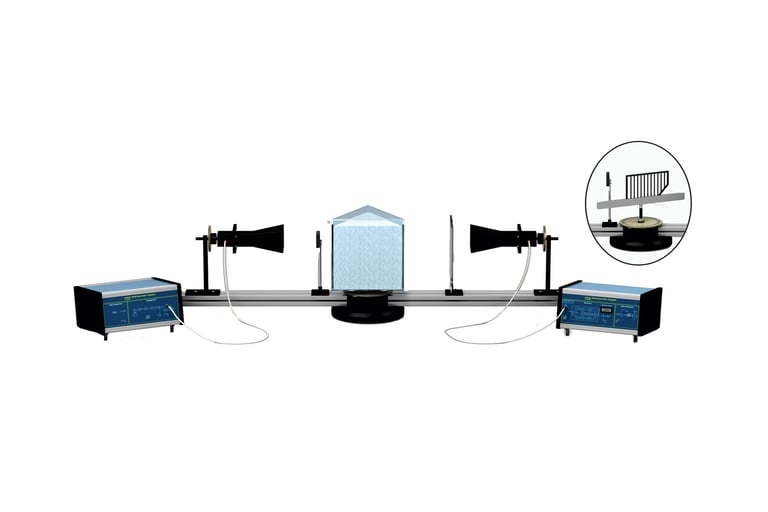

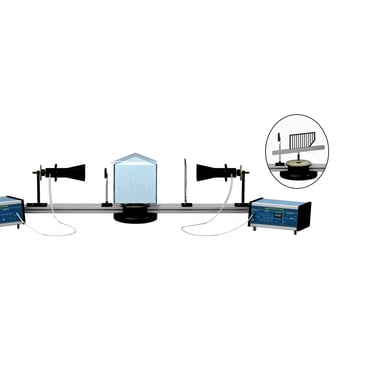

Wave Propagation Trainer IT-8300 has been designed to act as basic tool for performing experiments in the field of Wave Optics System. This system is specially developed to provide an innovative approach to understand the Wave theory. The trainer comprises the fundamental passive and active monolithic microwave integrated circuit (MMIC) building blocks along with turn tables, reflectors and prism to perform the experiments like reflection, refraction, diffraction and polarization.
Features:
Industrial Grade VCO
Rugged Equipment
Stable RF Detector
Technical Features:
Transmitter Panel:
VCO 5.8 GHz (Fixed)
DC Supply for VCO
1KHz Tone Generator
ASK Modulator
Receiver Panel:
RMS Power Detector
ASK De-Modulator
DC Supply for Detector
Audio Amplifier, Speaker
Components:
Graduated Transmitter & Receiver Arm
Horn Antennas
Turn Table with Degree Dial
Degree Dial for Horn
Reflector Plates, Plate Holder
Detector Probe with Stand
Prism with Acetal Beads
Partial Reflector
Polarization Grill
Accessories: Experiment Manual, 2mm Patch Cords, SMA Cables and power cord
