Bluetooth Transceiver Trainer
Experiments Included:
Study The Functionality of Bluetooth Transceiver Trainer
Operating Bluetooth using AT Commands Study the pairing of Slave unit with Master Unit using Software
Pairing of the Trainers as Master/Slave File Transfer among the trainers using Data Mode
Data Transfer using Graphical LCD (GLCD)
Study the Communication Using Data Generator
Data Communication Using USB HID Interface
Study of RF signal on Spectrum Analyzer
Category: Telecommunication Technology Products

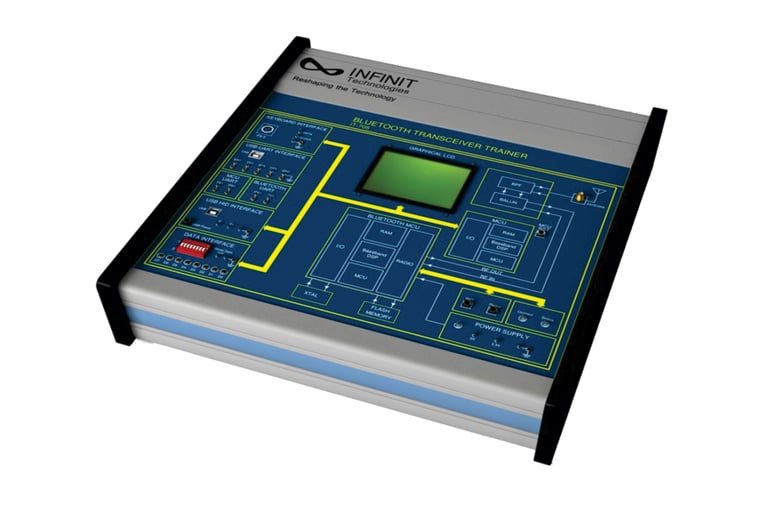

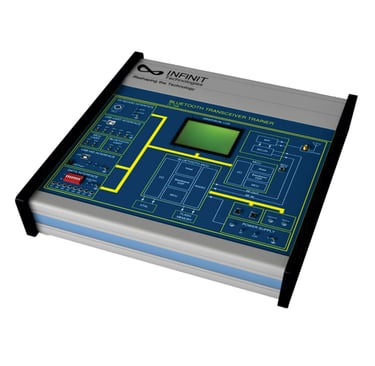

Bluetooth Transceiver Trainer is designed for students and researchers in the field of RF and IT engineering to understand the basic concepts of Bluetooth Technology. This trainer is based on Class 2 Bluetooth System having range up to 10 meters and is fully compliant for Data Communication. It consists of two identical modules and any one of these can be selected as a Master or Slave for Communication. This Training System can be connected to PC for operation and execution of Bluetooth AT Commands. Bluetooth standard AT commands can be run on the graphical LCD display also with the help of keyboard.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Built-in Bluetooth Module
Built-in Data Generator
Built-in Protection Circuit
Each Section Clearly Marked for Easy Understanding
Technical Features:
Carrier Frequency: 2.40 GHz to 2.48 GHz
Bandwidth: 80 MHz
Modulation FHSS/GFSK
Channels: 79
Channel Intervals: 1 MHz
Transmission Power: +4dBm max (2.5mW)
Transmission Range: 10 meter approximate
Transmission rate (over the air): 721kbps
Receive sensitivity: -83dBm typ.
Stack Profiles Included: SPP, DUN, LAN, Headset, HFP, Audio Gateway, FTP Client/Server, OBEX, OPP Push/Pull, GAP SDP, RFCOMM, and L2CAP protocols
Output Interface: USB-UART and USB
Operating temperature range: -40~ +70ºC
Antenna: Whip Antenna
