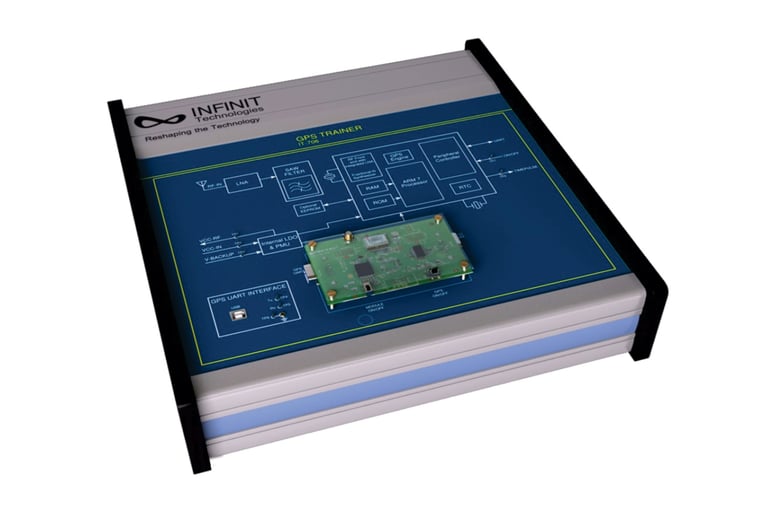

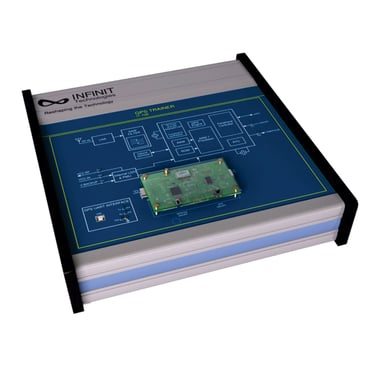

GPS Trainer
Experiments Included:
Study of GPS Theory
Study of GPS Hardware
Study of NMEA Protocol
Study of GPS Software
Study of Different NMEA output codes
Study of Satellite Signal Strength
Study of UTC Date & Time
Category: Telecommunication Technology Products
Navigation played a very important role in our lives since we started travelling. Global Positioning System (GPS), now a days it is becoming very important part of our life as the technology has made it available to every person. This technology is enabling ordinary people, with no knowledge of navigation, to find their way around the Earth. This technology is used for many purposes, like for fun, for saving lives, to find a way around lost path etc. This Trainer explores the theory and practical related to GPS technology.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Each Section Clearly Marked for Easy Understanding
Technical Features:
Carrier Frequency: L1 Band (1575.42MHz)
Channel: 48
Horizontal Accuracy: <2.5m
Velocity Accuracy: <0.01m/s
Acceleration Accuracy: 0.1m/s2
Time to Fist Fix: <35s
Sensitivity: -148dBm
Maximum Altitude: <18288m
Maximum Velocity: <514m/s
PC Interface: USB-UART
Protocol: NMEA
Antenna: External with SMA Connector
Accessories: USB cable, Software CD, GPS Antenna, Experiment Manual and Mains Cord
