GSM Phone Application Trainer
Experiments Included:
Introduction to Trainer Sections
Introduction to Menu Driven Software
Study of Power Supply Section
Study of SIM Card Interface Section
Study of Microphone & Speaker Section
Study of Vibrator Section
Study of Charging Section
Study of Frequency Signals during Call Process
Introduction to PC Software
Exploring SMS Options of Trainer using PC Software
Exploring Phone Book Options of Trainer using PC Software
Exploring Special Features of Trainer using PC Software
Category: Telecommunication Technology Products

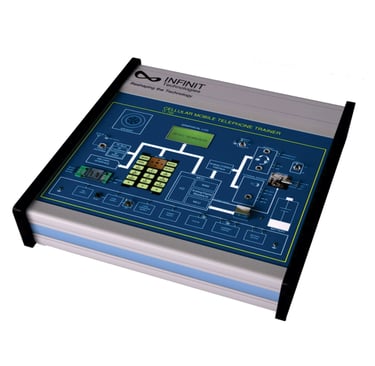

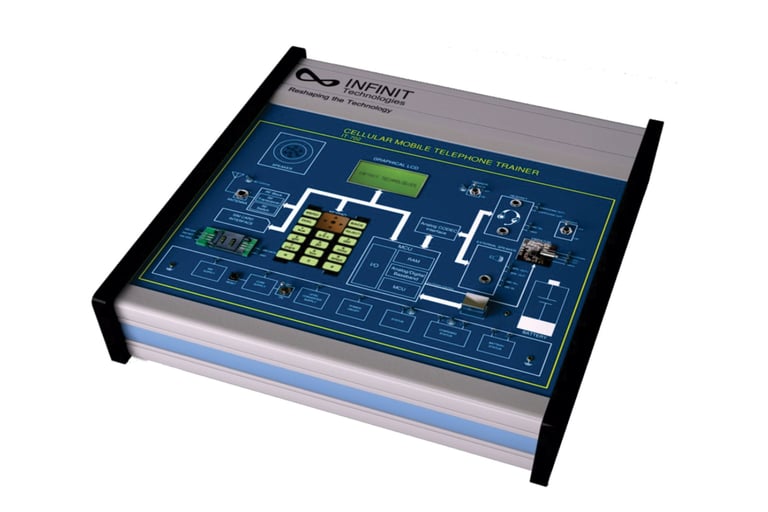

IT-702 provides the full understanding of mobile phone hardware. This trainer is a working model of a mobile phone. The software provided with this trainer allows the student to study and control IT-702 mobile phone trainer. This trainer allows student to understand the working of different sections of a mobile phone. Custom software provided with the train helps the student to control the features of mobile phone through PC.
Features:
Power Supply Included
Required Circuits Tested
Each Section Clearly Marked for Input and Output
Built-in Amplifier
Built-in Protection Circuit
Built-in SIM Interface
Built-In Speaker with Amplifier
Each Section Clearly Marked for Easy Understanding
Technical Features:
Cellular System: EGSM/GSM 800/1800/1900 Auto Selected
Output Power: 25dBm ±5dB
Channel spacing: 200 KHz
Antenna: Omni directional with Magnetic Base
Display: 128 × 64 pixels Graphical LCD
SIM Interface: Supports 3V & 1.8V SIM Cards
Battery: 1200mAH Li-on
Keypad: 4×4 Matrix Keypad with 5-Way Joy Stick and Decoder
PC Interface: USB-UART @ 57600 Baud
Vibrator: 1Hz Pulse with Driver
Speaker: 8 Ohm @ 0.5W
Audio Amplifier: 3.1W Fully Differential
Charging: On-Board Charging interface
Software: Menu Driven
Accessories: Power cord, Experiment Manual, Mono Head Phone with Microphone, GSM Antenna, Software CD, 2mm patch Cord, USB Cable
